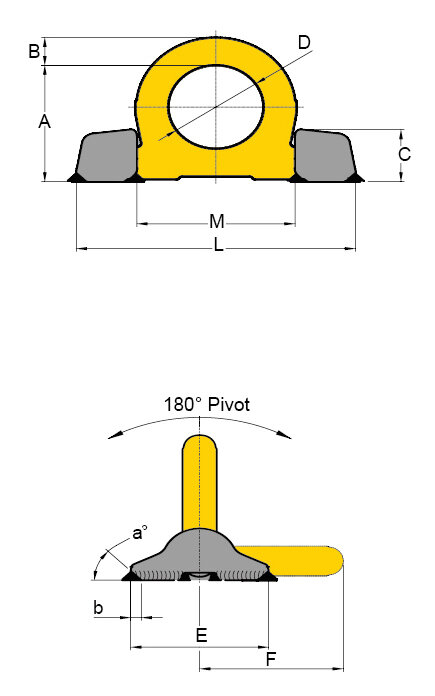

General: Pivots 180°, designed minimizes head room.
Load rated parts are 100% magnaflux crack detected.
The two points of attachment facilitate an even and optimal force distribution into the work piece and thus, usage of thinner base plates is possible.
The welding block is forged out of material with excellent welding properties.
Low profile design with high strength.
The ring is stowable thus avoiding the hazards of tripping and snagging.
- Material: Forged alloy steel, quenched and tempered.
- Marking: According to standard, CE-marked
- Finish: Painted.
- Standard: EN 1677-1
- Safety factor: 4:1
- Grade: 10
