KWB






  • Material: Alloy steel grade 10.
  • Marking: Code and grade.
  • Finish: Painted.
  • Standard: EN 1677-4
  • Safety factor: 4:1.
  • Grade: 10
kwb_GL_S1_225mm
kwb_GL_S1_m_225mm
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

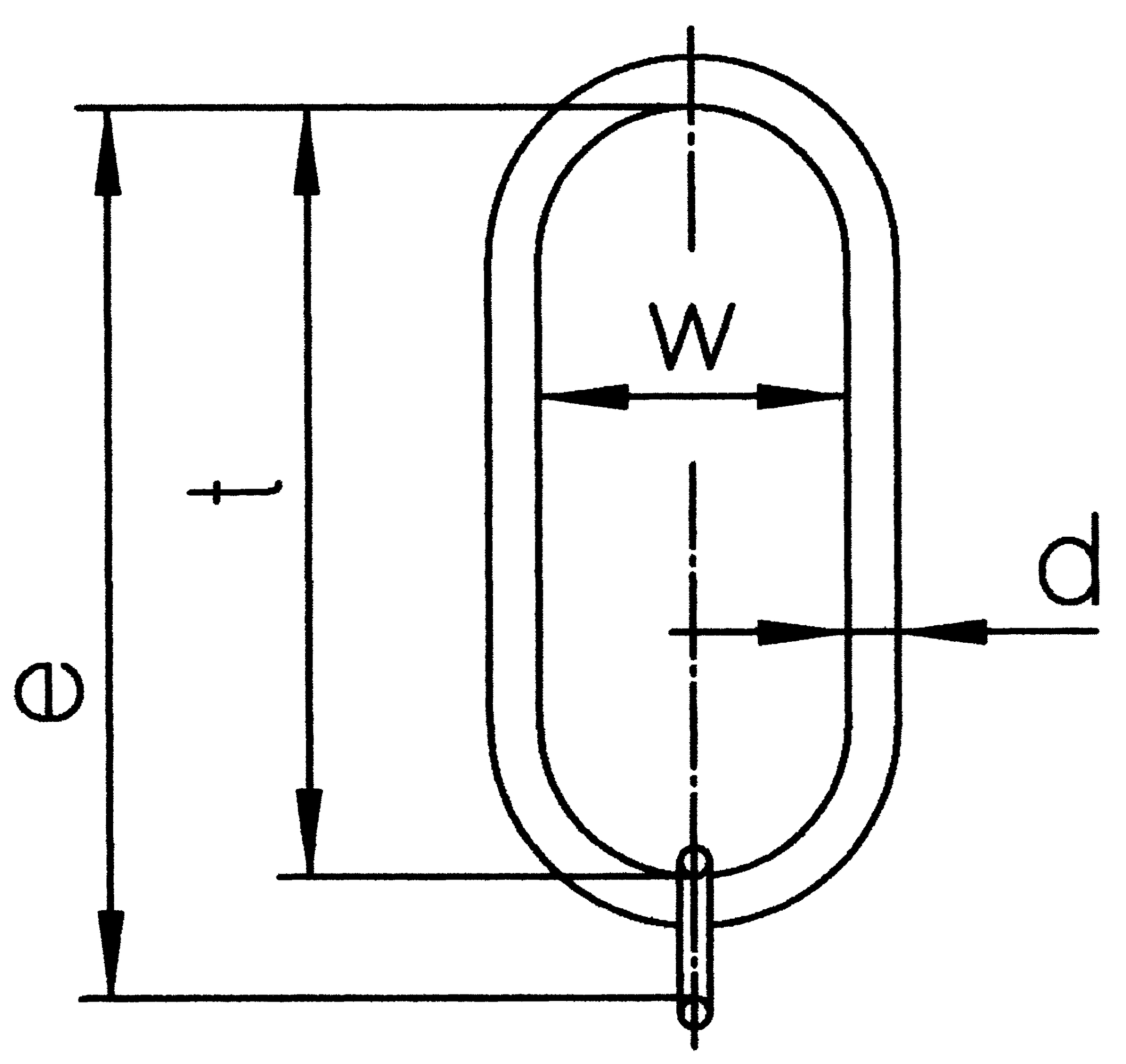

W (mm) For chain gr 10 Ø 1 leg (mm) Usable with acrane hook DIN 15401 No. up to D (mm) e (mm) t (mm) CAD
11.0213303 GL/S 1x6/7/8 2,5 180 6-7-8 25 22 394 340
11.0270058 GL/S 1x10 4 180 10 25 27 410 340
11.0270061 GL/S 1x13* 6,7 180 13 25 27 340 340
11.0270062 GL/S 1x16* 10 180 16 25 33 340 340
11.0270063 GL/S 1x19/22* 19 180 19-22 25 40 340 340
* Without intermediate link
