General: Specially rugged profile chain in grade 12 for lifting.

  • Material: Alloy steel grade 12.
  • Marking: Every link is marked with manufacturer ID and grade.
  • Temperature range: -60ºC to 300ºC.
  • Finish: Light blue powdercoated.
  • Note: Not to be heat-treated.
  • Grade: 12
Chain
KLM_e_225mm
Select a row from the table below, then click the add to quote button

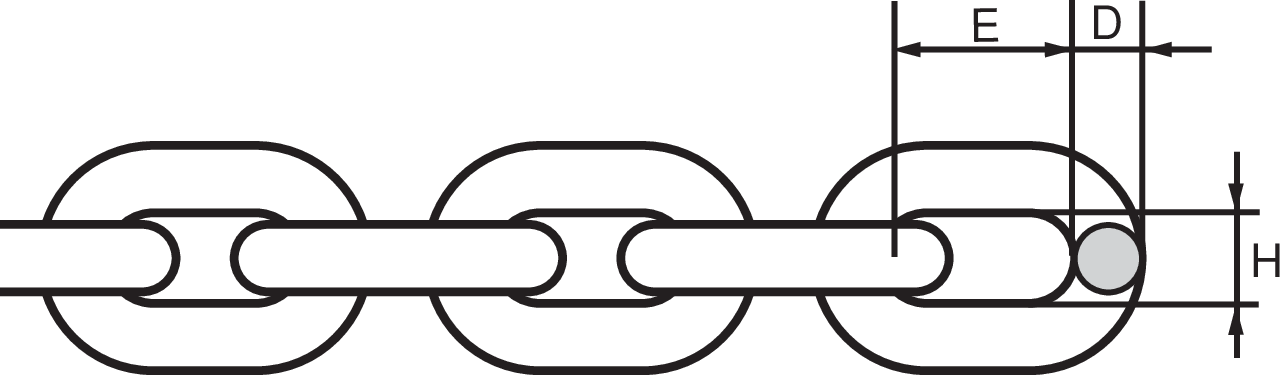

Art No Code Diameter
mm
WLL
Ton
Breaking force (kN) Outside width (mm) E (mm) H (mm) Weight
kg/m
CAD
11.6685761 WINPRO 7 7 2,36 92,6 26 22 10 1,36
11.6686082 WINPRO 8 8 3 118 29 25 11 1,64
11.6685762 WINPRO 10 10 5 196 37 33 14 2,7
11.6685763 WINPRO 13 13 8 314 50 41 19 4,8
*Lifting applications for safety factor 4:1
