The KITO CB Series chain hoists have a shock resistant gear casing, double ratcheted spring, precision gears and double casing (to protect against dust and water), mechanical breaks, load chain guide and long-life chain. Reliable, durable and easy to use. Capacity from 500 kg to 50 t (special design up to 100 t).
- Plain trolley
- Geared trolley
- Canvas chain bucket
- Overload limiter
- Material: Nickel plated load chain, grade 10.
- Marking: Type plate with WLL, CE-marking and serial number.
- Finish: Painted.
- Safety factor: 4:1.

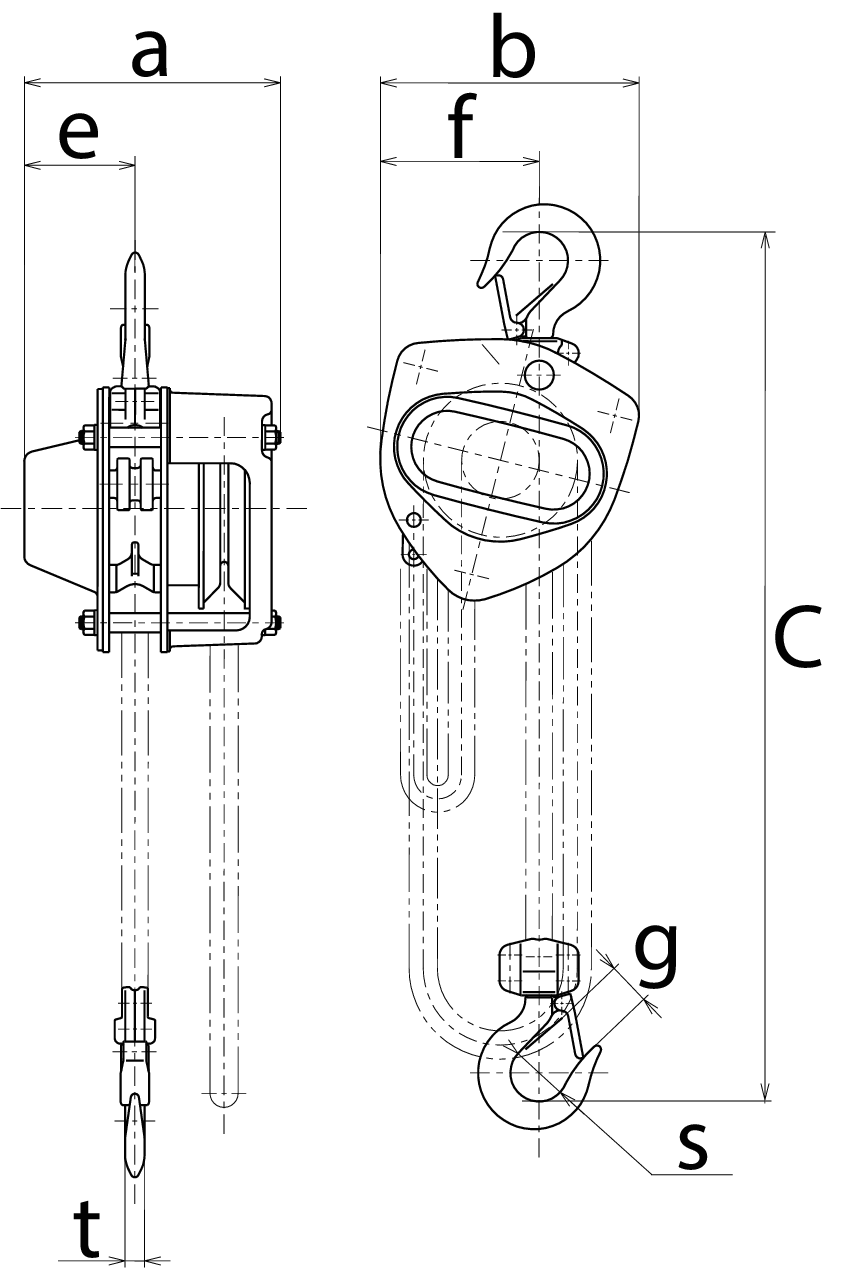

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
