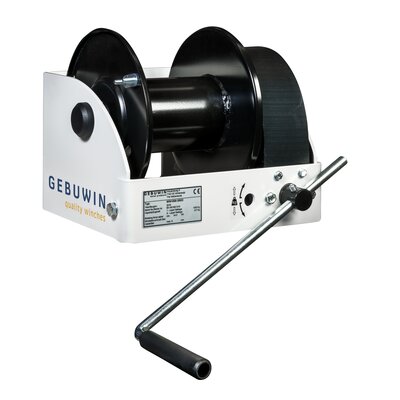

Hand Winch Worm Gear WW250-1500

Hand operated worm gear winch WW 250-1500.
Pulling capacity is approx. 2.5 times the hoisting capacity. The worm gear hand winch has a transmission that consists of a worm shaft and wheel.

Specifications:
Right angled, easy to grease worm transmission and maintenance free bearings
Cable outlet possible upward, downward and at rear.
Adjustable crank, with ergonomic grip
Load pressure brake with double ratchet system

Optional:
Zinc plated finish (6-8 micron) (EV)
ATEX certified (EX)
Grooved drum as extra option (GD)
Crank force limiter and load limiter
Double (2D) or multitiple cable drum compartments (XD)

  • Marking: According to standard
  • Finish: Standard paint finish (thickness is 60-80 micron in 1 layer) in grey (RAL 7035) and black (RAL 9005) according to DIN 12944, C1M
  • Standard: EN 13157
  • Note: Steel or stainless steel wire ropes must be ordered separately
  • Safety factor: 4:1
