Powertex
  • Cr6+ Free

Features:

  • Each hoist is dynamic proof load tested 1,5 x WLL before leaving the factory
  • Compact, lightweight construction.
  • Durable all steel construction with powder coated finish and plated frame components.
  • Safe, well covered automatic load reaction brake.
  • European made COROLIM® protected load chain.
  • Bottom hook with ball bearing.
  • RFID equipped (chip) for easy service and inspection.
  • QR code for on-site access to Multilanguage user manuals.
  • User manuals in 14 languages included.
  • Testcertificate enclosed.
  • Marking: According to standard
  • Temperature range: -10°C up to +50°C.
  • Standard: EN 13157, EN 818-7
  • Safety factor: 4:1
Powertes Lever Hoist_new
Powertex Lever Hoist_new_1
250 kg 500 - 3.000 kg 6.000 kg
Select a row from the table below, then click the add to cart button

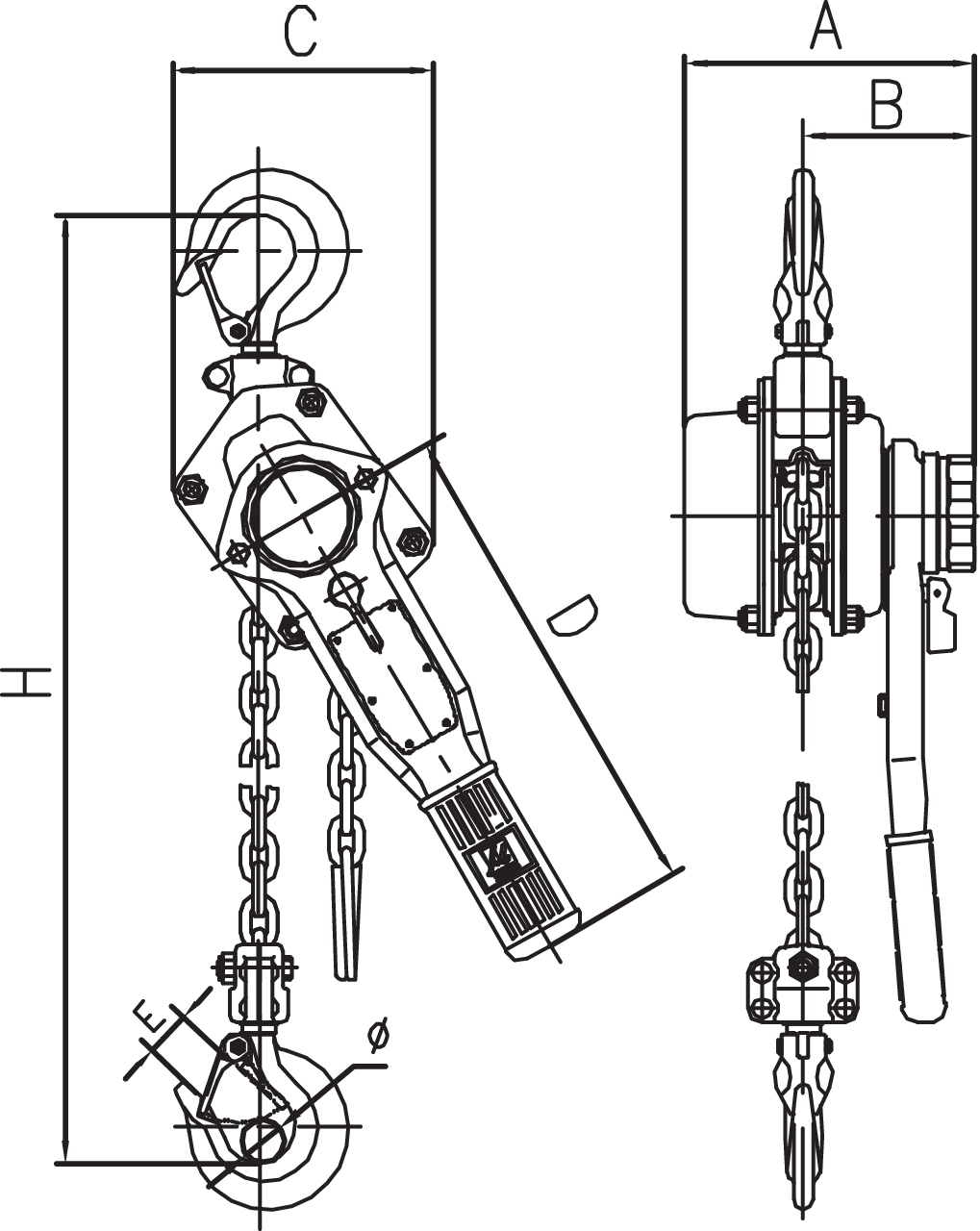

Part Code WLL Lifting height
m
Load chain Ø
mm
Number of falls A
mm
B
mm
C
mm
D
mm
E
mm
H min
mm
Ø
mm
Weight
16.20PLH0025030 0,25 3 4 x 12 1 100 71 86 158 20 280 18 2,3
16.20PLH0050030 0,5 3 5 x 15 1 150 90 118 253 22 280 20 5,3
16.20PLH0100030 1 3 6 x 18 1 156 95 138 278 26 330 25 8,1
16.20PLH0150030 1,5 3 7,1 x 21 1 186 112 145 378 29 385 30 11,2
16.20PLH0300030 3 3 10 x 28 1 208 120 198 388 37 435 36 20,5
16.20PLH0600030 6 3 10 x 28 2 208 120 230 388 43 615 43 29,5
16.20PLH0900030 9 3 10 x 28 3 208 120 338 388 50 690 87 49
Last 2 digits indicate the lifting height. For example 15 = 1,5 m
Weight for hoist with 1,5 m lift.
