Green Pin

- General: D tüüpi seekel


- Standard: EN 13889, US Fed. Spec. RR-C271, Klass A.

- Certification: At no extra charges this product can be supplied with a works certificate, 3.1 certificate, manufacturer test certificate and/or EC Declaration of Conformity.



  • Materjal: Eriteras klass 6, quenched and tempered.
  • Märgistus: Vastavalt standardile
  • Pinnakate: Kuumtsingitud, lisaks polt veel värvitud.
  • Standard: EN 13889
  • Märkus: Key for (un)screwing the pin sold separately.
  • Ohutustegur: 6:1
  • Klass: 6
Vali sobiv rida allolevast tabelist ja kliki ostukorvi ikoonile

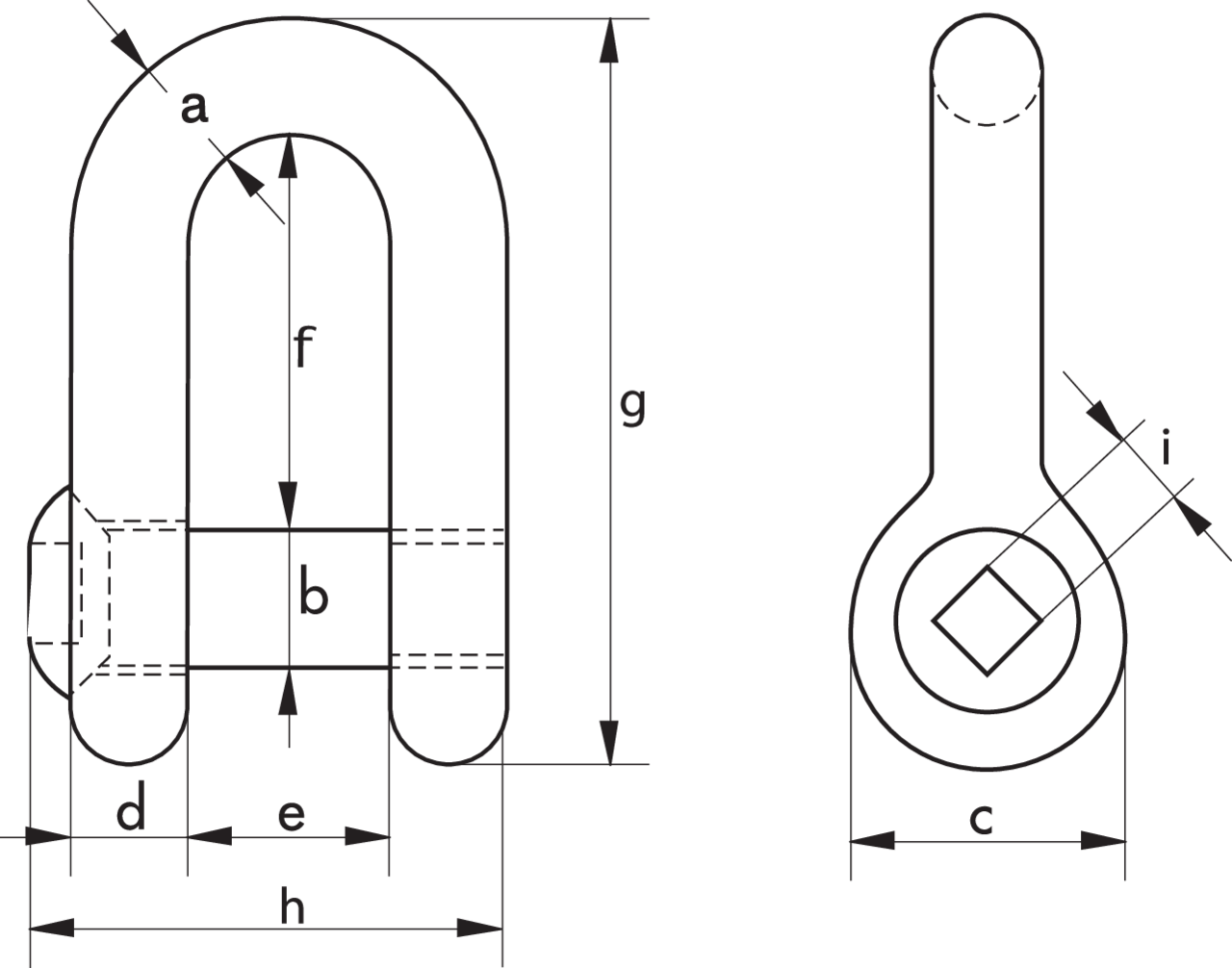

Tootekood WLL
tonn
A
mm
B
mm
C
mm
D
mm
e
mm
f
mm
g
mm
h
mm
i
mm
Kaal
kg
CAD
11.30GPGDVV13 2 13,5 16 34 13 22 43 81 51 11 0,34
11.30GPGDVV16 3,25 16 19 40 16 27 51 97 63 11 0,6
11.30GPGDVV19 4,75 19 22 46 19 31 59 112 74 11 0,98
11.30GPGDVV22 6,5 22 25 52 22 36 73 134 85 13 1,26
11.30GPGDVV25 8,5 25 28 59 25 43 85 154 99 13 2,14
11.30GPGDVV28 9,5 28 32 66 28 47 90 167 110 17 3,05
11.30GPGDVV32 12 32 35 72 32 51 94 180 122 17 3,56
11.30GPGDVV38 17 38 42 88 38 60 127 230 145 17 6,84
