Crosby

Design: Jaw and jaw swivel with tapered roller thrust bearing. Suitable for frequent rotation under load.

Proof load: 2 x WLL.

Important! Crosby swivels should only be used with the recommended wire rope.

  • Märgistus: WLL.
  • Pinnakate: Painted.
  • Ohutustegur: 5:1.
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule
Tootekood WLL
tonn

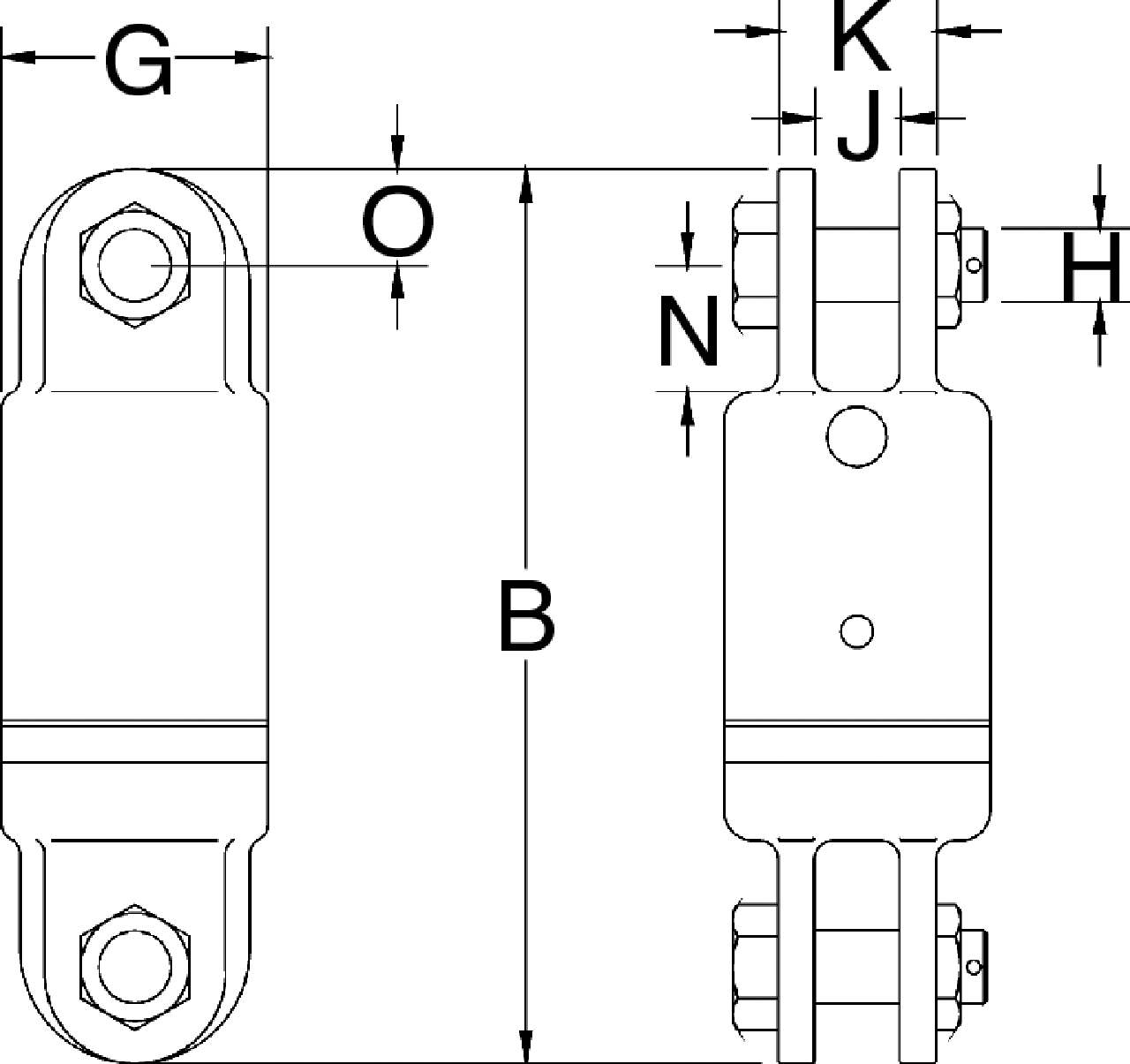

Trossi Ø (mm) Swivel No B (mm) G (mm) H (mm) J (mm) K (mm) N (mm) O (mm) Kaal
kg
CAD
11.46297020 3 13 3-S-2 236 70,0 19,1 22,4 41,1 33,3 25,4 4,37
11.46297226 5 16 5-S-2 262 76,0 22,4 25,4 57,0 41,1 28,4 6,21
11.46297422 8,5 19 8-S-2 321 102 25,4 39,5 71,5 54,0 35,1 11,9
11.46297627 10 22 10-S-2 426 114 38,1 44,5 86,0 89,0 44,5 20,8
11.46297823 15 26 15-S-2 435 127 38,1 44,5 86,0 89,0 44,5 28,5
11.46298127 25 25-S-2 527 152 51,0 51,0 117 93,5 60,5 64
11.46298225 35 35-S-2 527 165 51,0 51,0 117 93,5 60,5 70
11.46298323 45 45-S-2 641 178 57,0 63,5 127 102 76,0 107
