• Ohutustegur: 4:1.
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule
Tootekood WLL
tonn

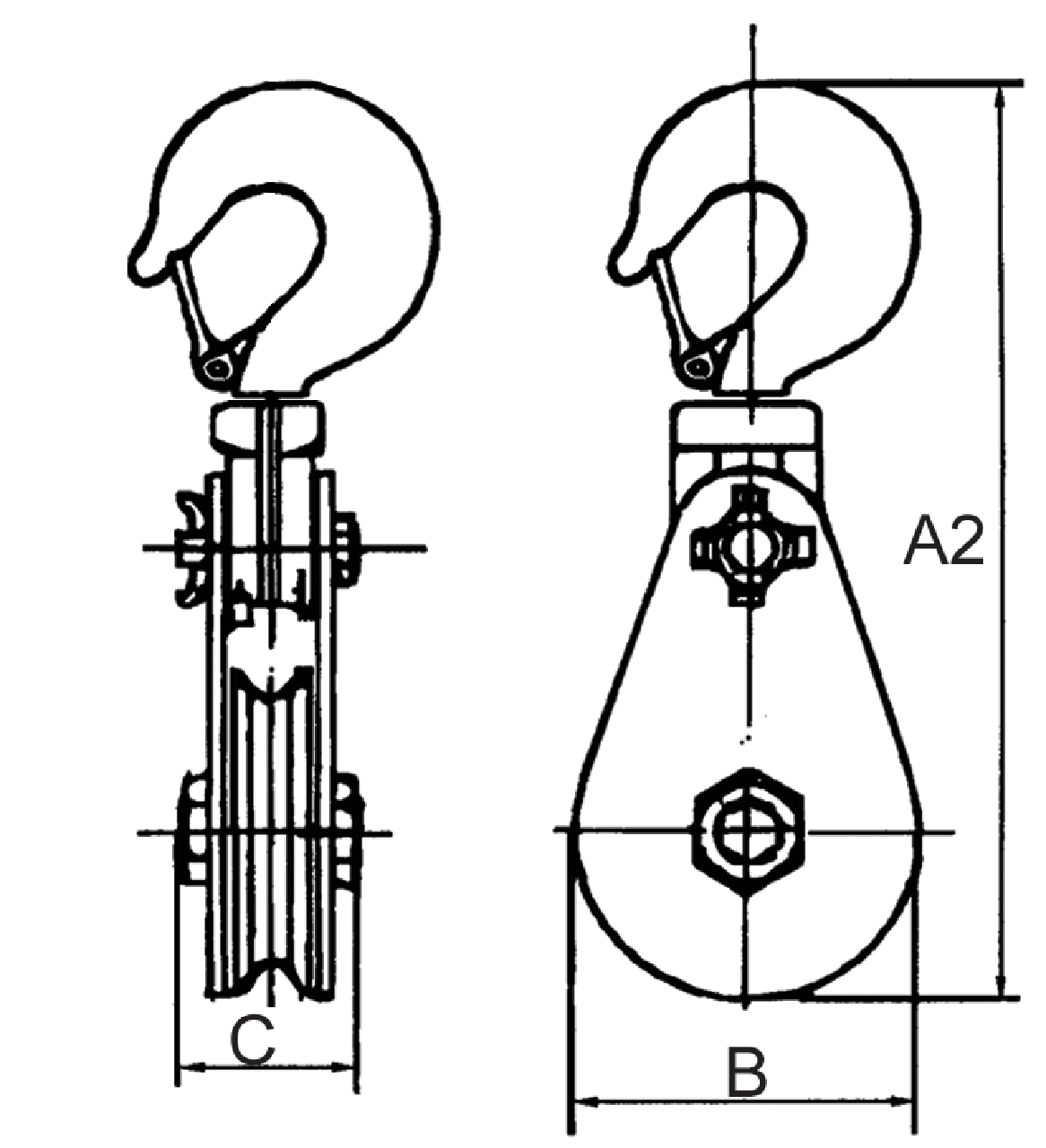

Trossi Ø (mm) Ratta Ø (mm) A2 (mm) B (mm) C (mm) Kaal
kg
CAD
16.15PSBH020075 2 7-9 75 292 82 70 4
16.15PSBH040115 4 10-12 115 358 120 70 6
16.15PSBH040150 4 16-19 150 412 160 70 14
16.15PSBH080200 8 19-22 200 549 210 93 16
16.15PSBH100250 10 24-26 250 695 260 115 38
16.15PSBH120300 12 24-26 300 797 310 133 56
16.15PSBH150200 15 22-24 200 672 210 102 24
16.15PSBH150300 15 24-26 300 797 310 133 65
16.15PSBH220365 22 28-32 365 960 365 140 90
16.15PSBH300300 30 28-30 300 993 310 193 125
16.15PSBH300400 30 32-35 400 1 085 415 155 135
16.15PSBH350350 35 32-35 350 1 028 365 193 130
16.15PSBH500600 50 46-50 600 1 495 625 275 418
