Üldine: Painutatud profiilteras

  • Materjal: Happekindel teras AISI 316
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule

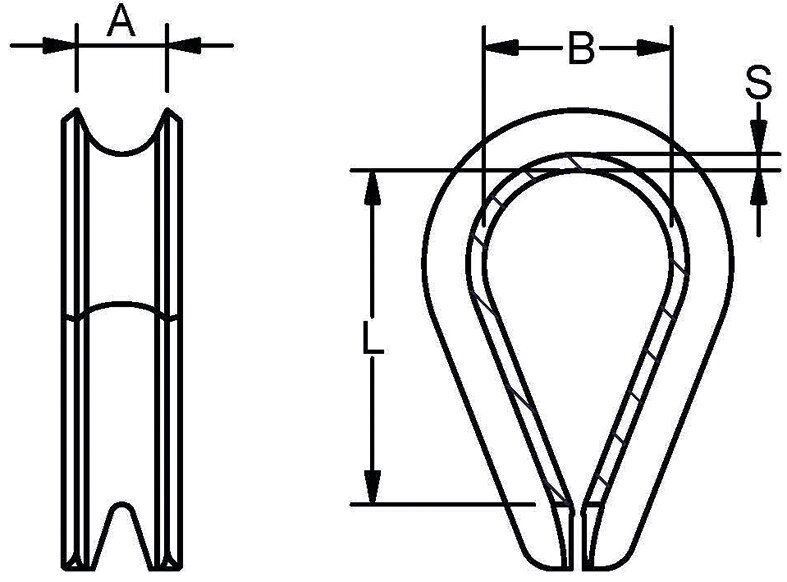

Tootekood Diameeter
mm
Pakk (tk) A
mm
B
mm
L
mm
S
mm
Kaal
kg/100tk
CAD
10.26110002 2 100 3 9 16 1,0 0,2
10.26110003 3 100 4 10 17 1,0 0,3
10.26110004 4 100 5 11 19 1,35 0,5
10.26110005 5 100 6 13 21 1,2 0,7
10.26110006 6 100 7 15 27 1,5 1,1
10.26110007 7 100 8 19 33 1,5 1,4
10.26110008 8 50 9 22 38 2,0 2,6
10.26110009 9 50 10 24 43 2,0 3,1
10.26110010 10 Bulk 11 27 46 2,7 4,9
10.26110012 12 Bulk 14 29 52 2,7 6,6
10.26110014 14 Bulk 16 33 57 3,0 9
10.26110016 16 Bulk 18 40 67 3,0 11,3
10.26110018 18 Bulk 20 45 75 4,0 19
10.26110020 20 Bulk 22 52 84 4,0 31,2
10.26110022 22 Bulk 24 56 93 5,0 45,5
10.26110026 26 Bulk 28 65 112 6,0 67
10.26110028 28 Bulk 30 80 135 5,5 82
10.26110032 32 Bulk 34 92 160 6,25 110
10.26110034 34 Bulk 36 105 160 6,0 117
10.26110036 36 Bulk 38 115 176 6,0 142
10.26110038 38 Bulk 40 120 180 8,0 206
10.26110040 40 Bulk 42 120 192 8,0 220
10.26110042 42 Bulk 45 150 240 8,0 304

CAD fail

CAD faili alla laadimiseks palun valige vastav toode ülalolevast tabelist ning vajutage "Laadi CAD" nupule. Peale CAD faili laadimist saate selle alla laadida.

Laadi CAD
Laadi alla
