Crosby



  • Omadused: If you need the beam to hang 100% straight with the flanges of the beam exactly horizontal, for instance when you weld the beam onto a ship section or other precision operations, we strongly
  • Märgistus: Vastavalt standardile, CE-tähisega
  • Standard: EN 13155
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule
Tootekood WLL
t
tonn

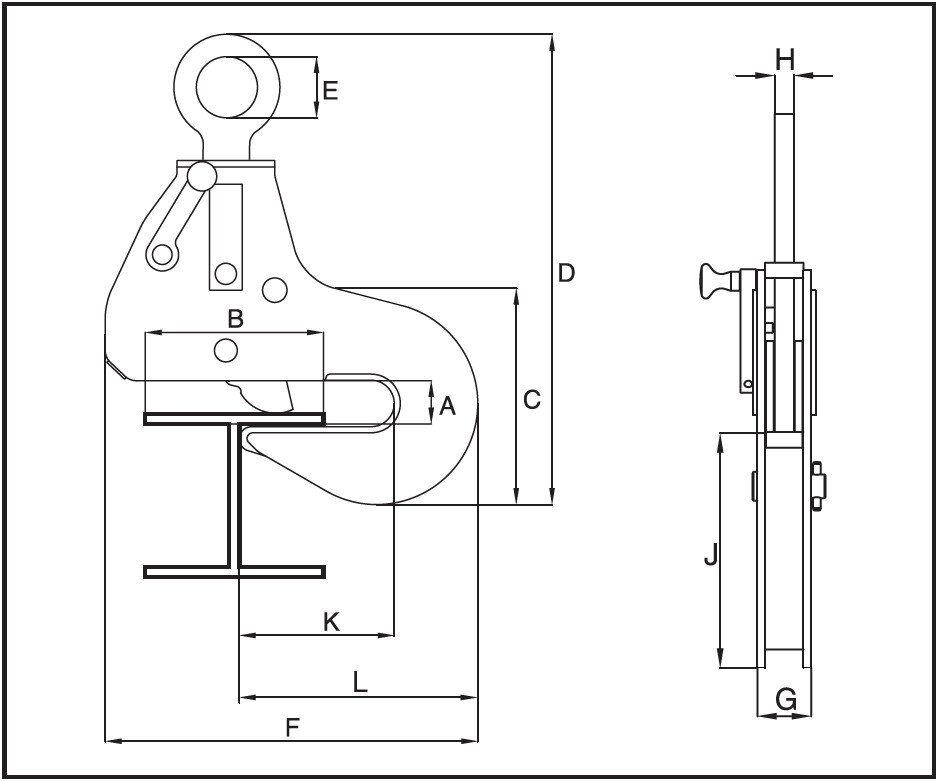

I P Model. Lõug B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
J
mm
K
mm
L
mm
Kaal
kg
CAD
16.022705925 1,5 1.5-IPBSNZ 0-32 100-270 304 480 70 319 47 16 165 148 240 14
16.022705926 3 3-IPBSNZ 0-40 100-330 352 494 75 408 56 20 207 182 260 22
16.022705927 4,5 4.5-IPBSNZ 0-50 100-360 420 630 75 457 56 20 250 188 293 30,5

CAD fail

CAD faili alla laadimiseks palun valige vastav toode ülalolevast tabelist ning vajutage "Laadi CAD" nupule. Peale CAD faili laadimist saate selle alla laadida.

Laadi CAD
Laadi alla
