Crosby


  • Omadused: The IPBKZ clamp is a handy little beam clamp for the transfer and stacking of steel beams against each other or in the flanges. The design of the clamp results in a near horizontal lift.
  • Standard: EN 13155
  • Ohutustegur: 4:1
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule
Tootekood WLL
tonn

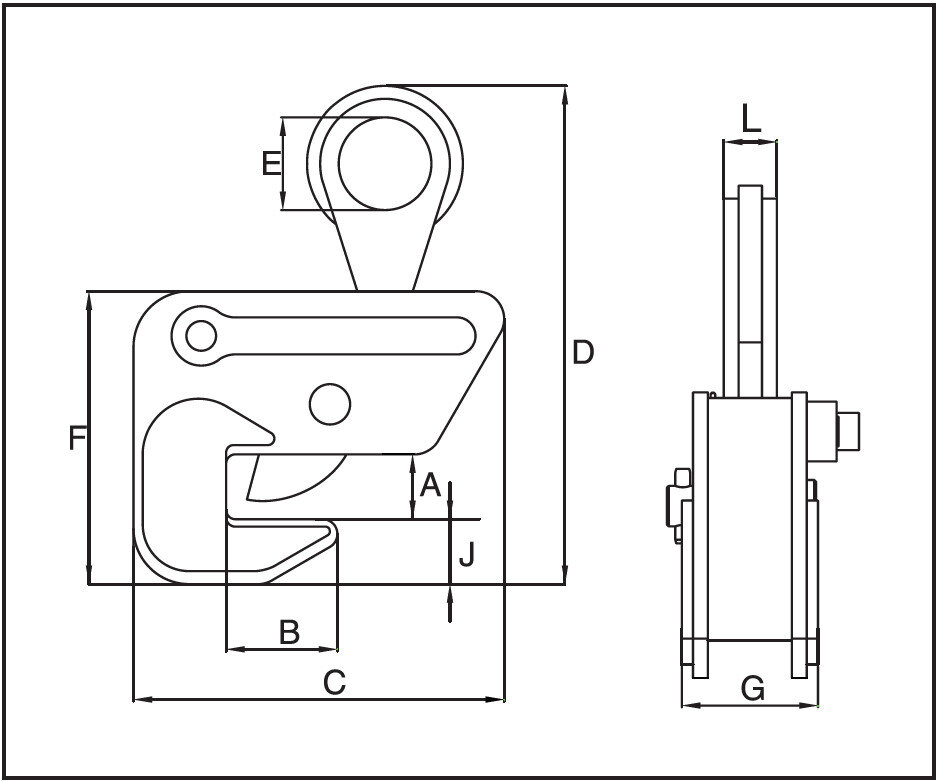

I P Model. Lõug B (mm) C (mm) D (mm) E (mm) F (mm) G
mm
J (mm) L (mm) Kaal
kg
CAD
16.022705461 0,75 0.75-IPBHZ 0-25 40 148 220 50 130 69 33 22 3
16.022705462 1,5 1.5-IPBHZ 0-25 60 203 255 50 158 73 35 28 6
16.022705463 3 3-IPBHZ 0-40 80 227 325 70 188 112 38 32 10,5
16.022705464 4,5 4.5-IPBHZ 0-40 112 284 413 70 251 116 80 40 25

CAD fail

CAD faili alla laadimiseks palun valige vastav toode ülalolevast tabelist ning vajutage "Laadi CAD" nupule. Peale CAD faili laadimist saate selle alla laadida.

Laadi CAD
Laadi alla
