Crosby
General: The IPBTO/10 shipbuilding clamp is used as a temporary tackle eye in spaces which have been reinforced with HP
(bulb) profiles such as engine rooms and shipsections. This clamp is fitted with a screwed spindle for easy attachment of
the clamp. The moment a load is applied, the clamp is automatically fixed.
Available in capacities of 1.5 thru 6 metric tons. Wide variety of jaw openings available: HP 160mm to HP 430mm.
Proof load: 2 x WLL


  • Märgistus: Logo, WLL, jaw capacity, serial number, proof load test date and CE-marking.
  • Pinnakate: Orange/blue painted.
  • Standard: EN 13155
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule
Tootekood WLL
tonn

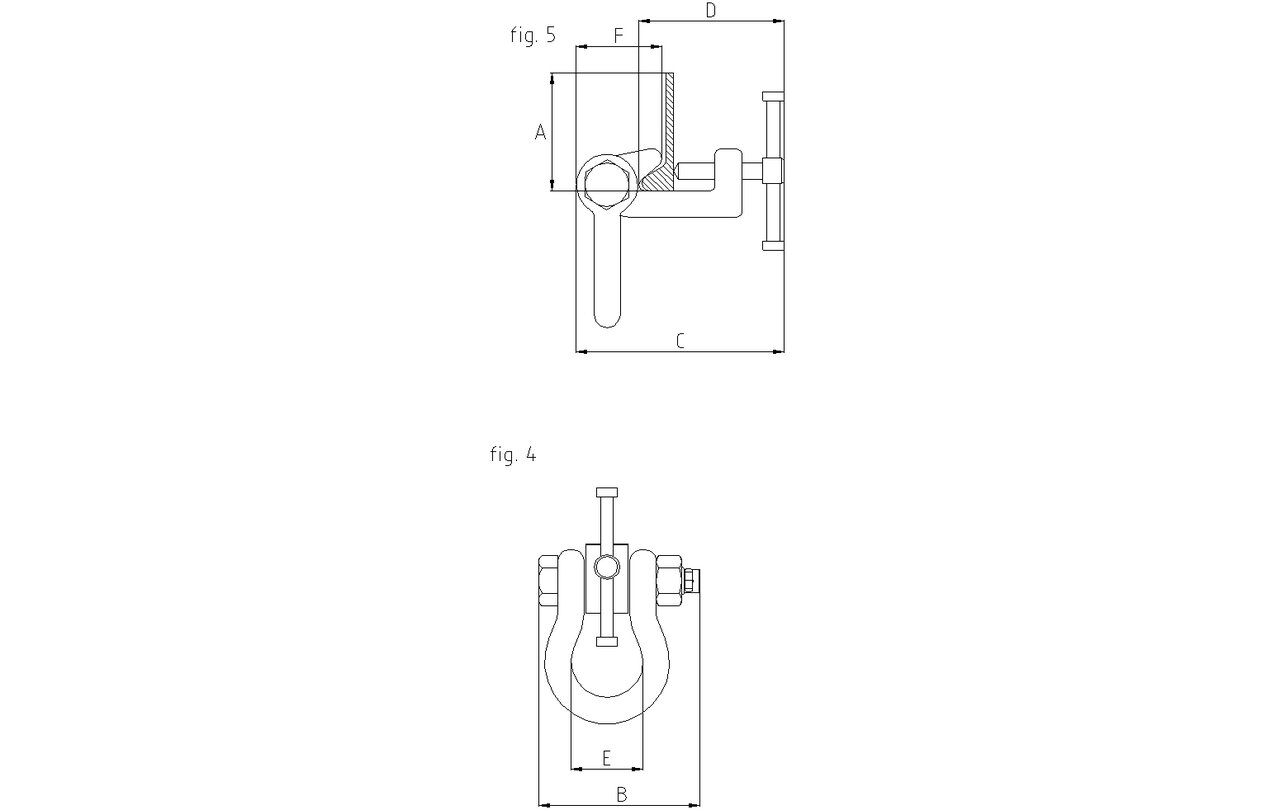

I P Model. Profile A* B (mm) C (mm) D (mm) E (mm) F (mm) Kaal
kg
CAD
16.012700980 1,5 1.5-IPBTO10 HP 160 - 240 137 188-209 129-150 68 81 4,3
16.012700986 3 3-IPBTO10 HP 240 - 320 137 188-217 145-174 68 78 6
16.012700991 6 6-IPBTO10 HP 300 - 430 185 255-297 195-236 98 102 13

CAD fail

CAD faili alla laadimiseks palun valige vastav toode ülalolevast tabelist ning vajutage "Laadi CAD" nupule. Peale CAD faili laadimist saate selle alla laadida.

Laadi CAD
Laadi alla
