Red Rooster

General:
Especially developped for the "Material Handling Industry". Suitable for applications with long lifting heights.
Features:
- Very high lifting and lowering speeds
- Precise variable speed control (cord - and pendant control)
- Compact and light weight
- Mechanical endstop system
- Cord control or pendant control
- Chain bag standard, max. 7 mtr. chain (larger available on request)
- Low noise level

Material:
Aluminium housing

Options:
- SMC air treatment unit: AC40-F04DM-8-B (Recommended).
- European manufacture to EN818-7
- Marine specification
- Special paint systems
- Corrosion protection
- ATEX specification
- Chain collectors (PVC, galvanised or stainless steel)
- Festoon systems
- Radio control
- Main air shut off valve
- ATEX - According to EC Directive 94/9/EC (Ex Classification)

Seda toodet ei ole võimalik online-päringule lisada. Palun võtke ühendust meie müügimeestega.
Art. no
code
WLL
Lifting Speed with load
Lifting Speed without load
lowering speed with load
air consumption lifting
air consumption lowering
air connection
min Houe Ø
chain falls
working Pressure
weight with 3m
weigth additional meter chain
Ton
m/min
m/min
m/min
l/sec
l/sec
" BSP
" hose
bar
kg
kg
16.23TCS-500C
TCS-500C and TCS-500PE
0.551
17
33
34
28 I/sec
33 I/sec
1/2" BSPT
1/2" hose
1 (6x3 19,1 mm)
6
19
0,8
16.23TCS-980C2
TCS-980C2 & TCS-980P2E
1.08
8,5
17
17
28
33
1/2 BSPT
1/2" hose
2 (6x3 x 19,1 mm)
6
24
1,6

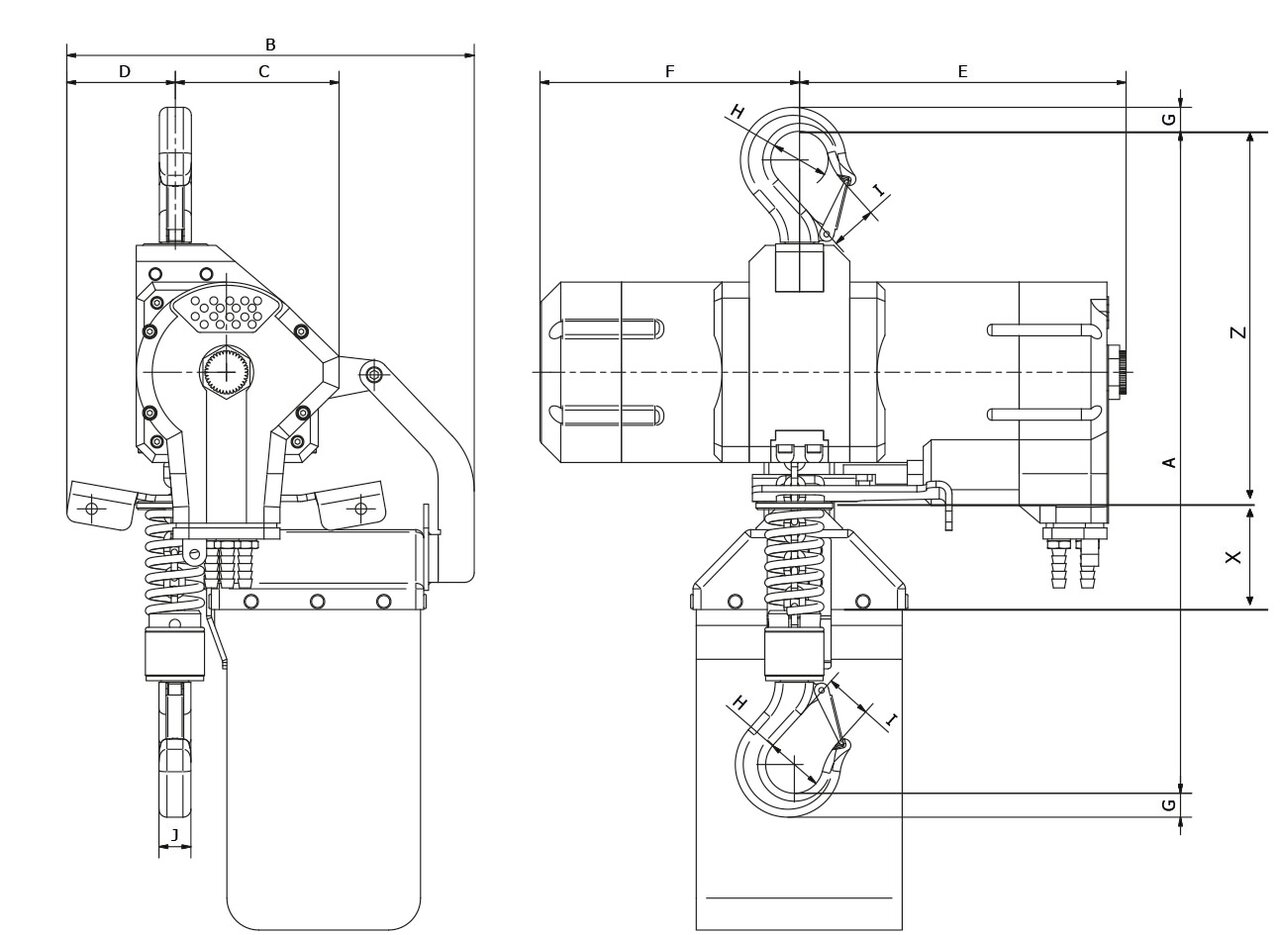

Mudel
A
B
C
D
E
F
G
I
J
X
Z
TCS-500
415
255
103
68
205
163
15
35
22
22
40
210
TCS-980
510
205
123
37
163
205
30
40
29
25
40
225
