Red Rooster
General: RED ROOSTER Compact Hoist are suitable for "Material- Handling". The pendant control is direct on the lower hook so the operator can control and position the load easy and direct. The perfect solution for horizontal movements is the combination with a push trolley.
Standard features:
- Pendant control direct on the lower hook
- Optimum load control, very precise positioning
- One-hand control
- Variable speed control
- Soft start and stop, no shock movements
- Handle can be positioned for left-hand or righthand operation
- Mechanical endstop system
Optional features:
- Marine Specification/Corrosion resistant
- Paint systems from C2 - Industrial to C5 - Offshore specification (Red finish as standard. Other RAL colours available on request)
- Choice of pendants
- Radio control pendant for electro pneumatic controls
- Control systems
- Chain collectors (PVC, galvanised or stainless steel)
- Various types of hook or clevis available
- Air supply systems and valves
- Piped away exhaust air
- In house design for "specials"
- Festoon systems
- Main air shut off valve
- ATEX - According to EC Directive 94/9/EC (Ex Classification)
Seda toodet ei ole võimalik online-päringule lisada. Palun võtke ühendust meie müügimeestega.
Tootekood
Tüüp
WLL Tonni
Tõstekiirus lastiga
m/min

Tõstekiirus lastita
m/min

Langetamiskiirus lastiga
m/min
Õhutarve tõstmisel
Õhutarve langetamisel
Kaal 3m tõstekõrgusega
16.23TCR-250ME
TCR-250ME
0.276
8.0
19.0
16.0
11.7
13.0
11.0

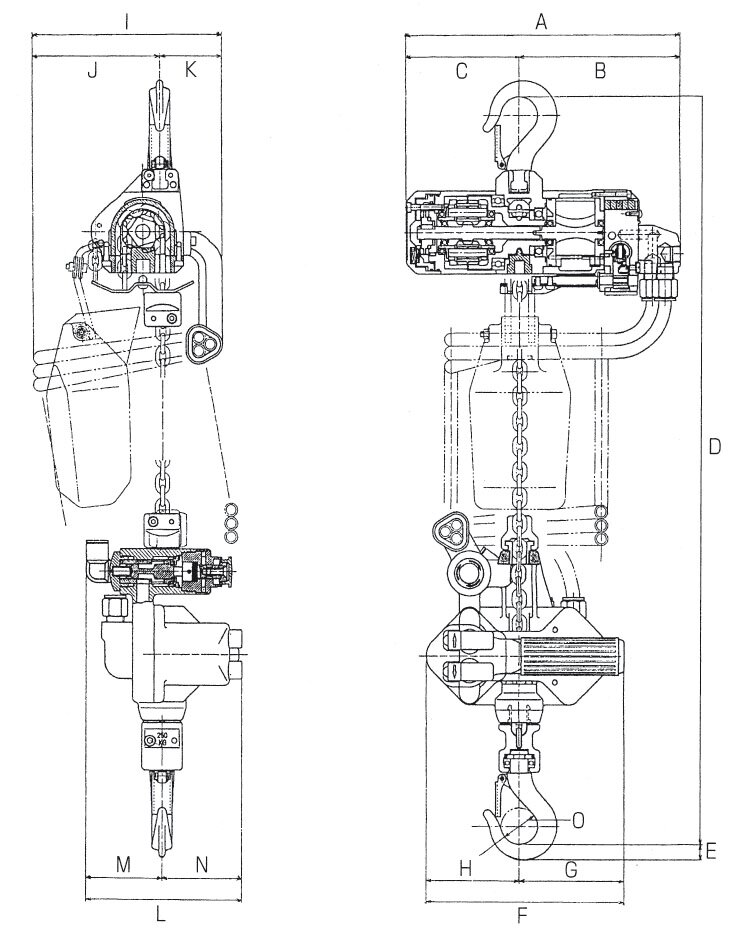

Type
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
TCR-250-ME
286
174
112
837
15
194
102
92
184
123
61
152
74
78
36

CAD fail

CAD faili alla laadimiseks palun valige vastav toode ülalolevast tabelist ning vajutage "Laadi CAD" nupule. Peale CAD faili laadimist saate selle alla laadida.

Laadi CAD
Laadi alla
