Svero

General:
- Easy and safe travel.
- Safe automatic load pressure brake.
- Cast iron worm wheel. Hardened worm screw.
- Protection guard around the worm wheel.
- Suspension of lacquered steel plate.
- Every wall mounted winch is marked with its own manufacturing number and is load tested.
- Approved by SIS for Showbiz use.

  • Märkus: Excl. wire (to be ordered separately).
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule
Tootekood Kood WLL
tonn

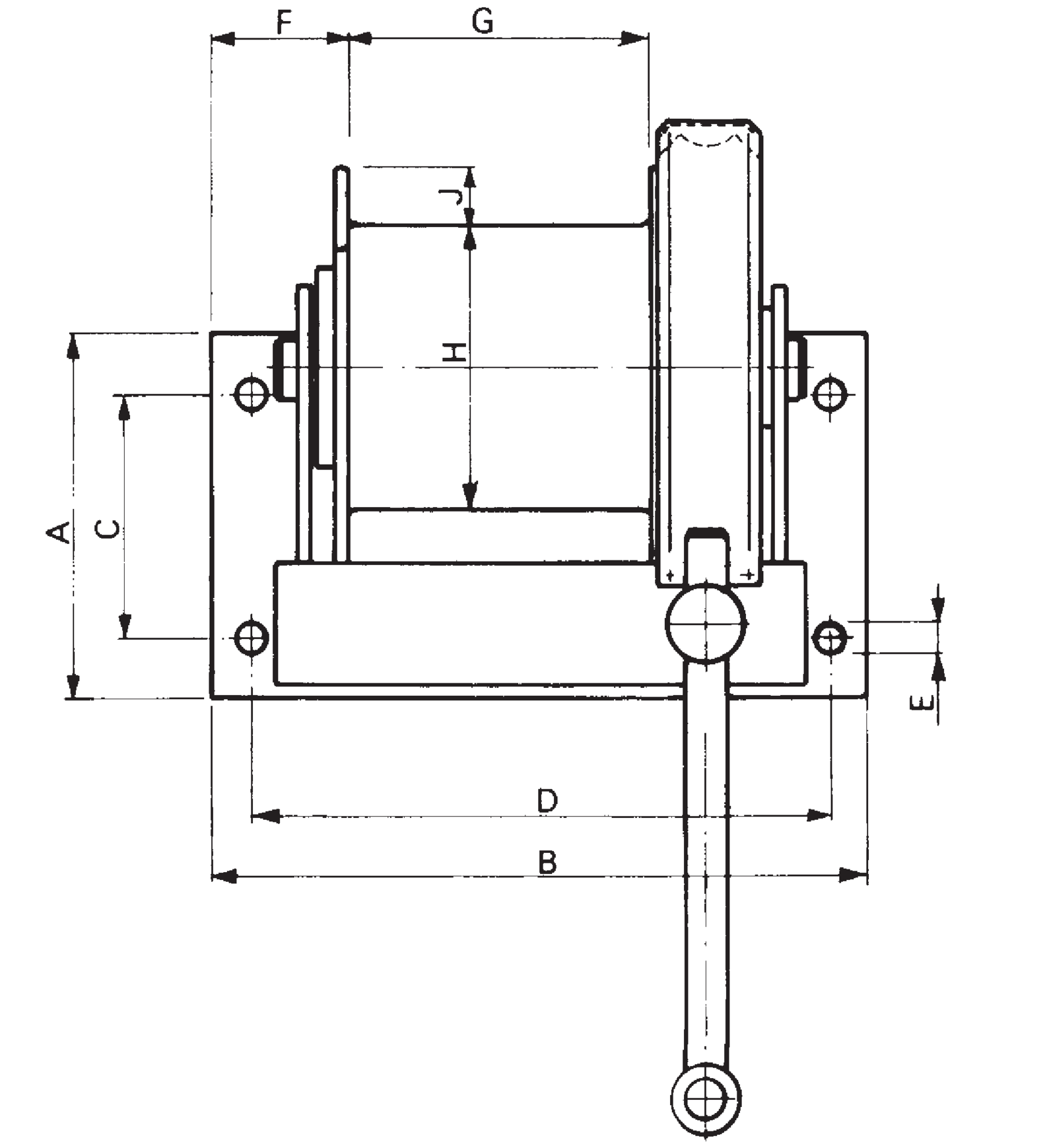

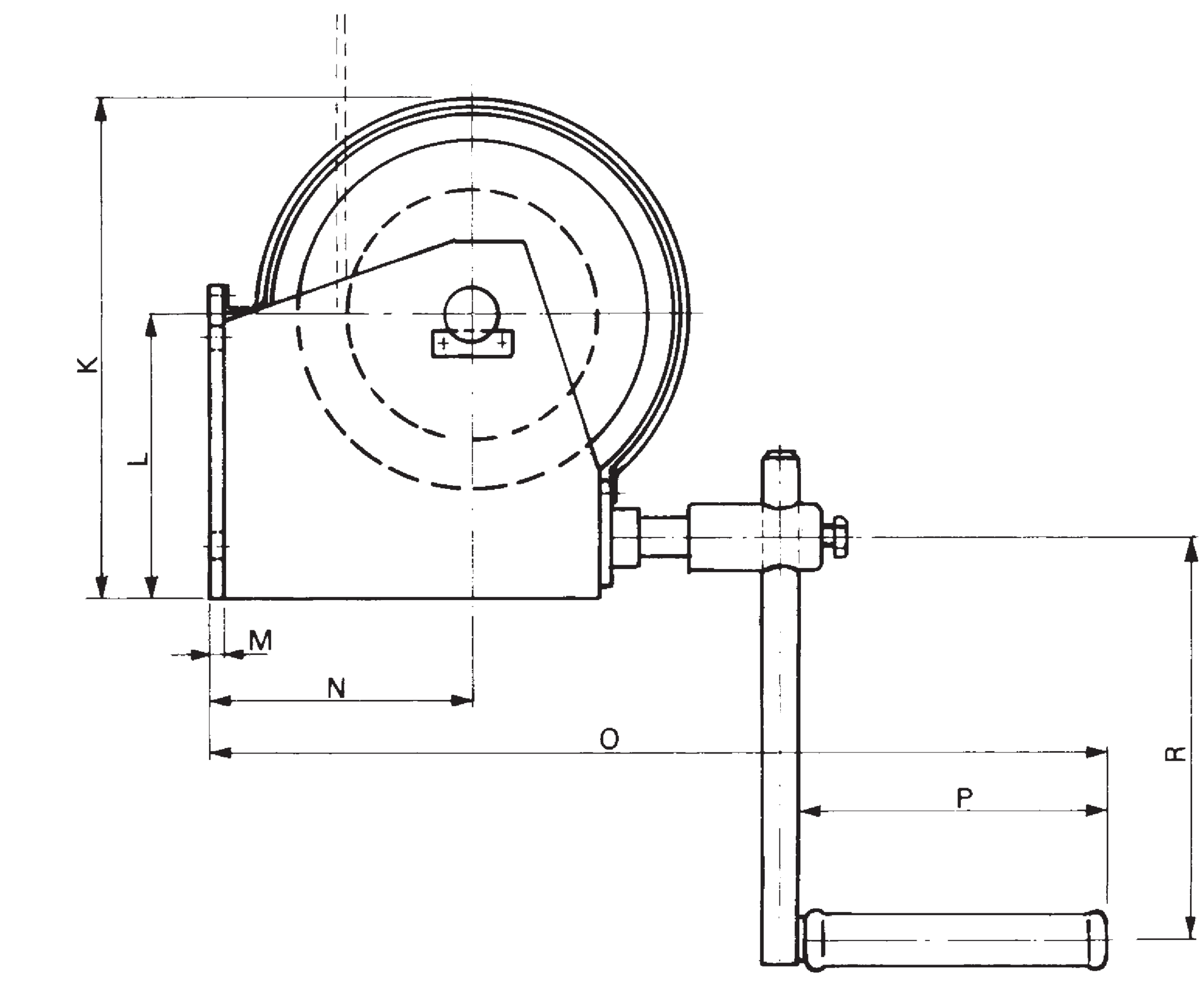

Lift/crank turn (mm) A (mm) B (mm) C (mm) D (mm) Ø E (mm) F (mm) G (mm) Ø H (mm) J (mm) K (mm) L (mm) M (mm) N (mm) O (mm) P (mm) R max. Kaal
kg
CAD
16.276211A 6211A 0,25 31 157 210 100 183 14 46 71 100 28 225 132 4 116 350 105 225 12
16.276113A 6113A 0,6 29 180 320 120 280 17 63 150 140 28 285 164 8 150 360 145 360 27
16.276114A 6114A 1 26 180 350 120 320 17 63 170 140 52 332 189 10 177 360 145 360 36
