Powertex
- Kompaktne, kergekaaluline konstruktsioon.
- Pulbervärvitud, vastupidav metallkonstrutsioon.
- Ohutu ja hästi kaetud automaatne Safe, well covered automatic load reaction brake.
- European made COROLIM® protected load chain.
- Bottom hook with ball bearing.
- RFID equipped (chip) for easy service and inspection.
- QR code for on-site access to Multilanguage user manuals.
- User manuals in 14 languages included.
- Fulfills the Machinery Directive 2006/42/EC.
- Comply fully with the EN norms 13157 and 818-7.
- Testcertificate enclosed.
  • Standard: EN 13157, EN 818-7
  • Ohutustegur: 4:1.
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule
Tootekood WLL
tonn

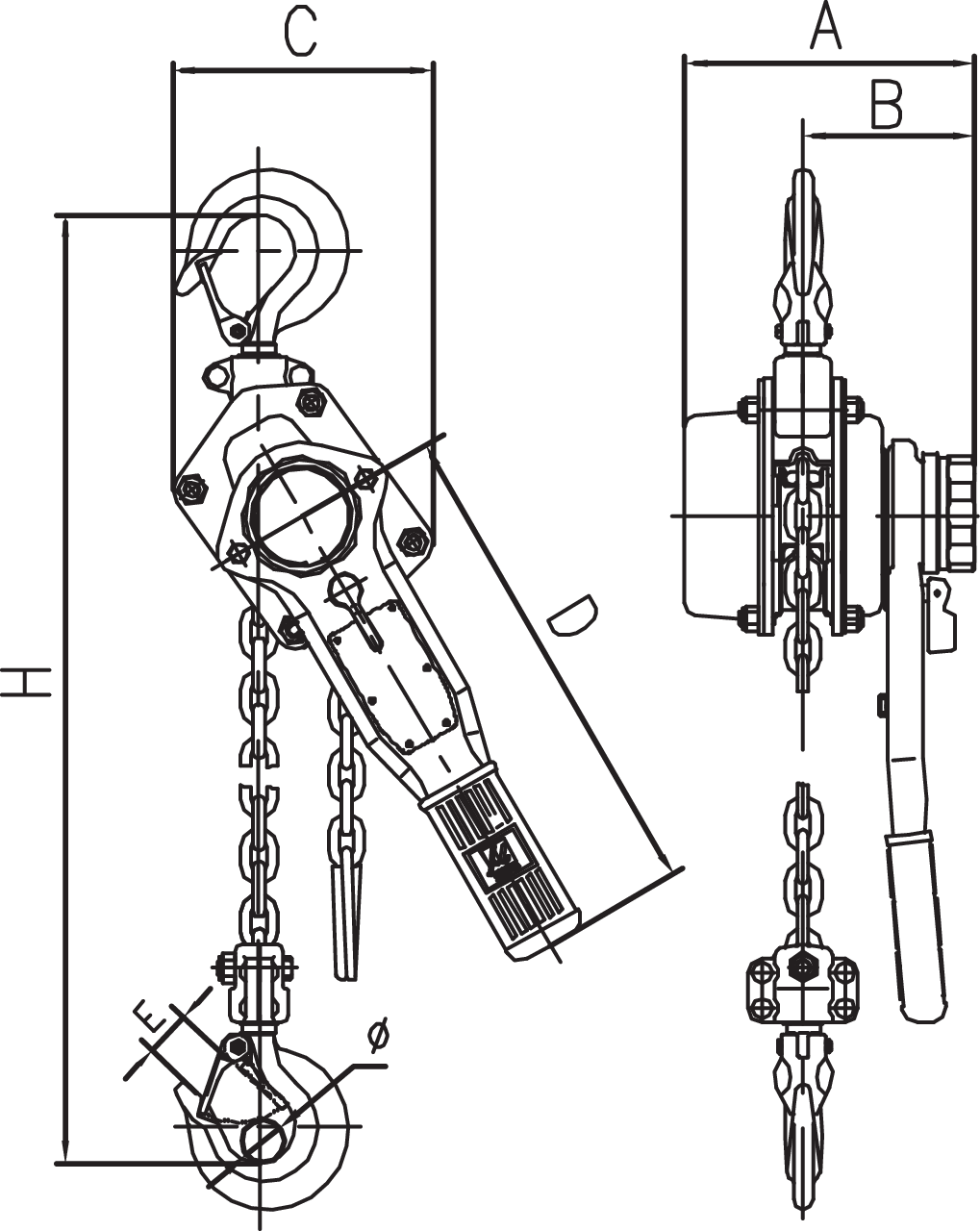

Standard tõstekõrgus (m) Testkoormus (kg) Keti languste arv Tõstekett Ø (mm) A (mm) B (mm) C (mm) D (mm) E (mm) H min (mm) Ø (mm) Kaal
kg
CAD
16.10PLH0025030 0,25 3 375 1 4 x 12 100 71 86 158 20 280 18 2,3
16.10PLH0050030 0,5 3 750 1 5 x 15 150 90 118 253 22 280 20 5,3
16.10PLH0100030 1 3 1 500 1 6 x 18 156 95 138 278 26 330 25 8,1
16.10PLH0150030 1,5 3 2 400 1 7,1 x 21 186 112 145 378 29 385 30 11,2
16.10PLH0300030 3 3 4 800 1 10 x 28 208 120 198 388 37 435 36 20,5
16.10PLH0600030 6 3 9 450 2 10 x 28 208 120 230 388 43 615 43 29,5
16.10PLH0900030 9 3 13 500 3 10 x 28 208 120 338 388 50 690 87 49

CAD fail

CAD faili alla laadimiseks palun valige vastav toode ülalolevast tabelist ning vajutage "Laadi CAD" nupule. Peale CAD faili laadimist saate selle alla laadida.

Laadi CAD
Laadi alla
