General: The pewag PLGW-PSA anchorage point is part of the anchorage system on which personal fall protection equipment can be fastened.
The PLGW-PSA is available in „Basic“ and „Supreme“: PLGW-PSA Basic is intended for permanent assembly to the anchorage system (e.g. tripod) and is mounted using a commercial Allen key.
The PLGW-PSA Supreme version has a patented system which allows for tool-free assembly and disassembly once the anchorage point is no longer in use and needs to be removed.


Standard: 795:2012 (1 person) and CEN/TS 16415 (2 persons).

  • Materjal: Alloy steel grade 10.
  • Märgistus: WLL, thread length, permitted number of persons and an individual serial number.
  • Pinnakate: Orange powder coated.
  • Standard: EN 795
  • Ohutustegur: 5:1.
  • Klass: 10
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule

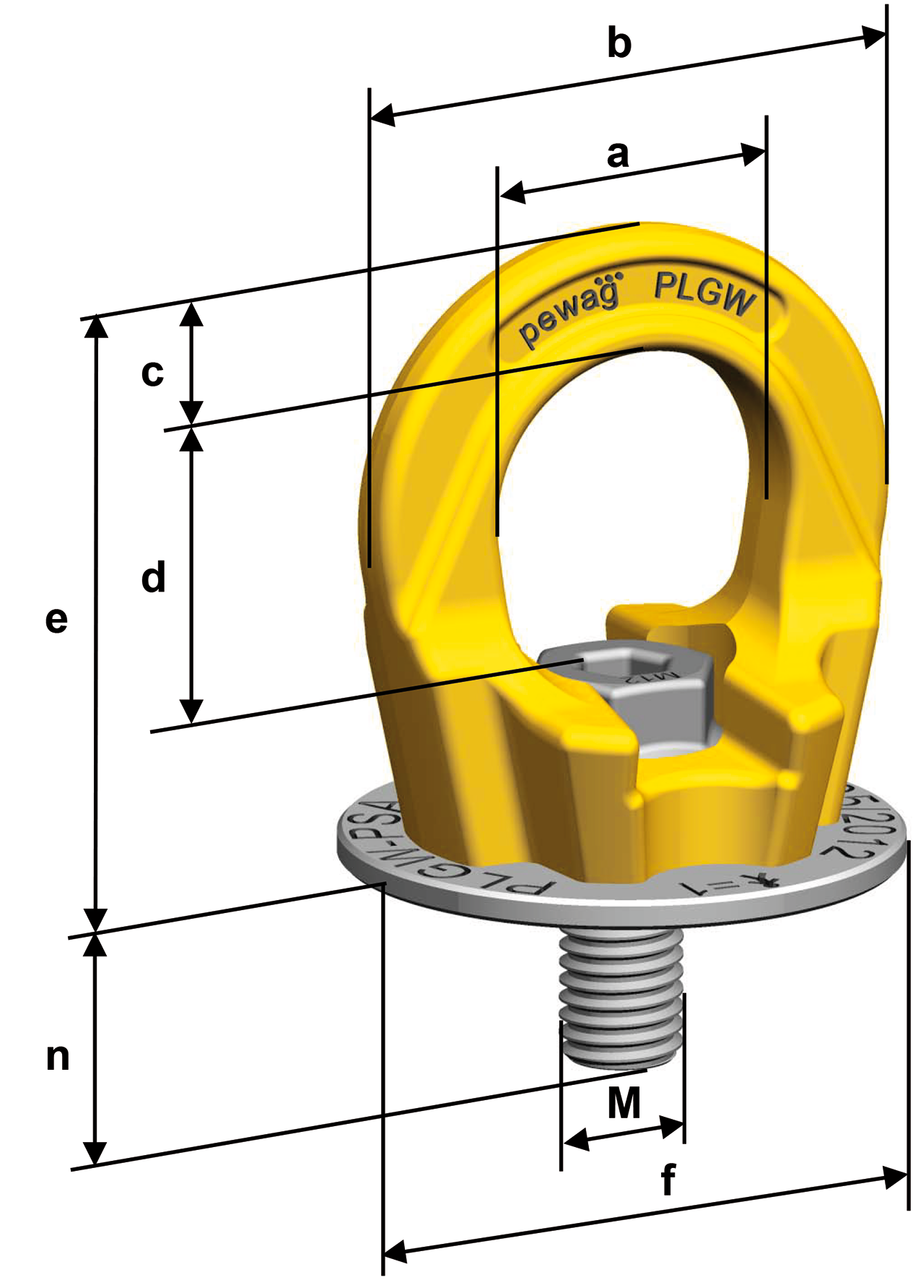

Tootekood Kood Suurus Model n (mm) n max. (mm) Persons A (mm) B (mm) C (mm) D (mm) e (mm) f (mm) Kaal
kg
CAD
19.0960928 PLGW PSA M12 M12 Supreme 20 160 1 30 55 12 32 63 55 0,31
19.0961066 PLGW PSA M12 M12 Basic 20 160 1 30 55 12 32 63 55 0,31
19.0960929 PLGW PSA M16 M16 Supreme 25 160 2 35 64 14 36 70 62 0,48
19.0961067 PLGW PSA M16 M16 Basic 25 160 2 35 64 14 36 70 62 0,48
19.0960927 PLGW PSA M20 M20 Supreme 30 160 2 40 69 16 41 70 66 0,63
19.0961069 PLGW PSA M20 M20 Basic 30 160 2 40 69 16 41 78 66 0,63
