Certification: At no extra charge this product can be supplied with a works certificate, and/or EC Declaration of Conformity.
  • Materjal: Alloy steel, grade 8, quenched and tempered.
  • Pinnakate: Painted yellow (J) or red (R).
  • Märkus: Equipped with needle roller thrust bearing.
  • Ohutustegur: MBL equals 4 x WLL.
  • Klass: 8
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule
Tootekood WLL
tonn

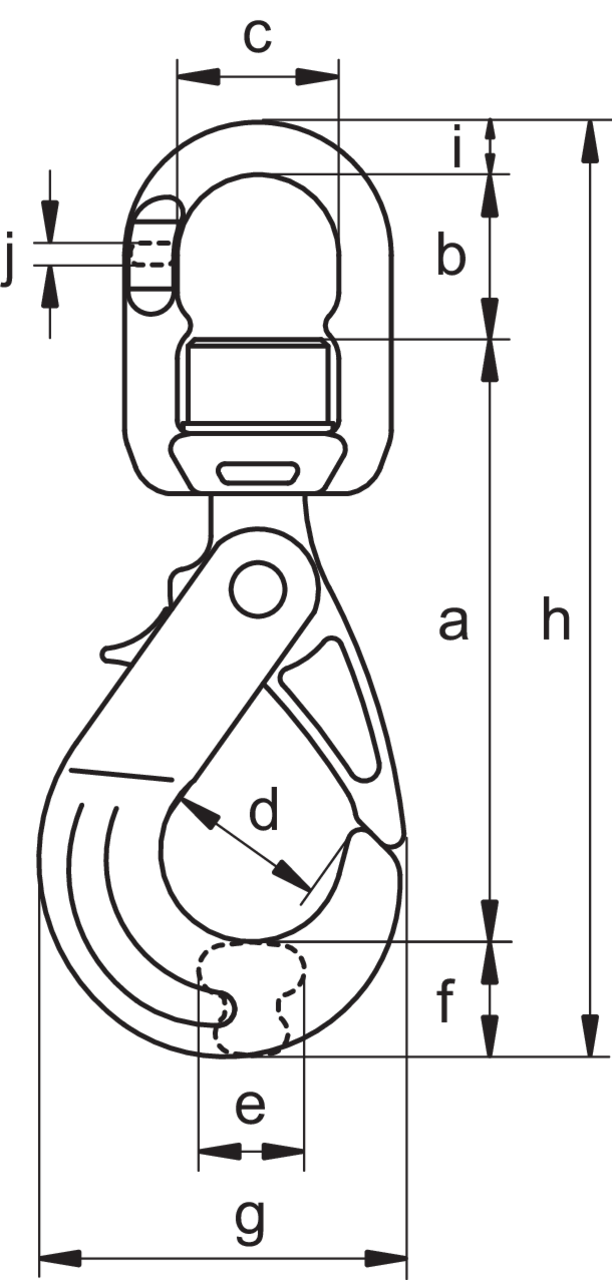

For chain dia. (mm) A (mm) B (mm) C (mm) D (mm) e (mm) f (mm) g (mm) h (mm) i (mm) j (mm) Kaal
kg
CAD
11.15GKE1J 2 7-8 122 33 32 32 17 25 77 192 12 6 0,77
11.15GKE2J 3,2 10 148 40 37 43 24 29 92 231 14 8 1,38
11.15GKE3J 5,4 13 185 39 48 47 32 34 111 282 16 11 2,56
11.15GKE4J 8,2 16 213 49 58 61 37 46 142 339 21 14 4,58
11.15GKE5J 12,8 18-20 268 60 73 74 43 57 185 417 25 17 9,51
11.15GKE6J 15,5 22 305 71 82 90 52 62 207 480 25 22 12,85
