pewag

General: Application for general lifting.
Material: Alloy steel grade 12.
Marking: Pewag or PW, winner pro or 12, H16, CE, batch code and type.
Safety factor: 4:1.
Finish: Light blue powdercoated.

WARNING! Not to be heat-treated.

  • Märgistus: Vastavalt standardile, CE-tähisega
  • Standard: EN 1677-2
  • Ohutustegur: 4:1
  • Klass: 12
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule

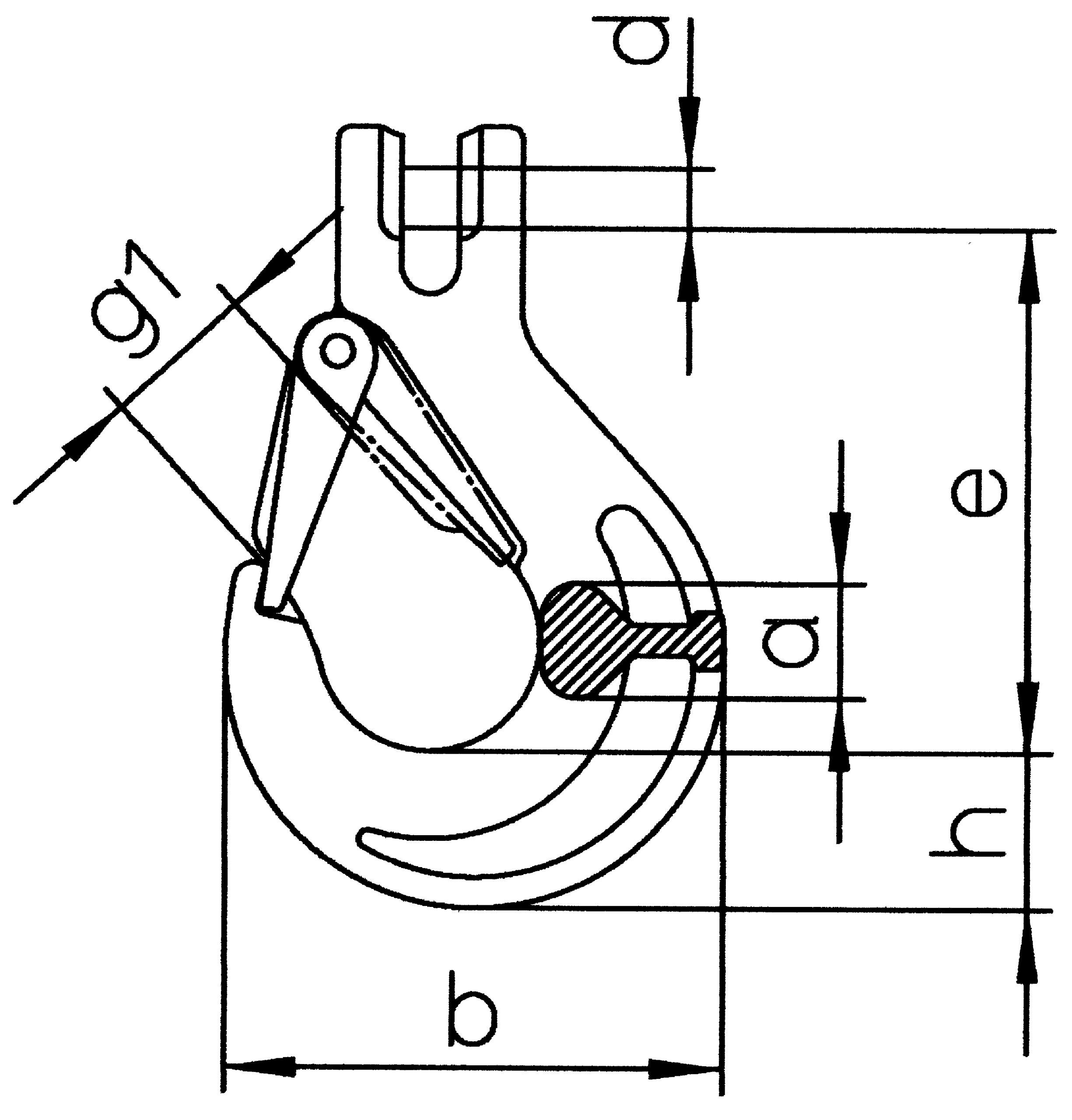

Tootekood Kood WLL
tonn
LC
kN
a
mm
b
mm
d
mm
e
mm
g1
mm
h
mm
Kaal
kg
CAD
11.1218504 KHSWP 7 2,36 47 19 101 9 105 36 26 0,85
11.1211598 KHSWP 8 3 60 19 101 10 105 36 26 0,85
11.1218463 KHSWP 10 5 100 26 118 14 121 41 33 1,68
11.1218475 KHSWP 13 8 160 30 147 17 148 49 43 2,99
11.1218481 KHSWP 16 12,5 35 176 21 173 59 51 5,1
