General: Master link of stainless steel, for the assembling of III- and IV-leg wire rope slings.



  • Materjal: Stainless steel AISI 316.
  • Märgistus: Code and grade.
  • Ohutustegur: 4
  • Klass: 6

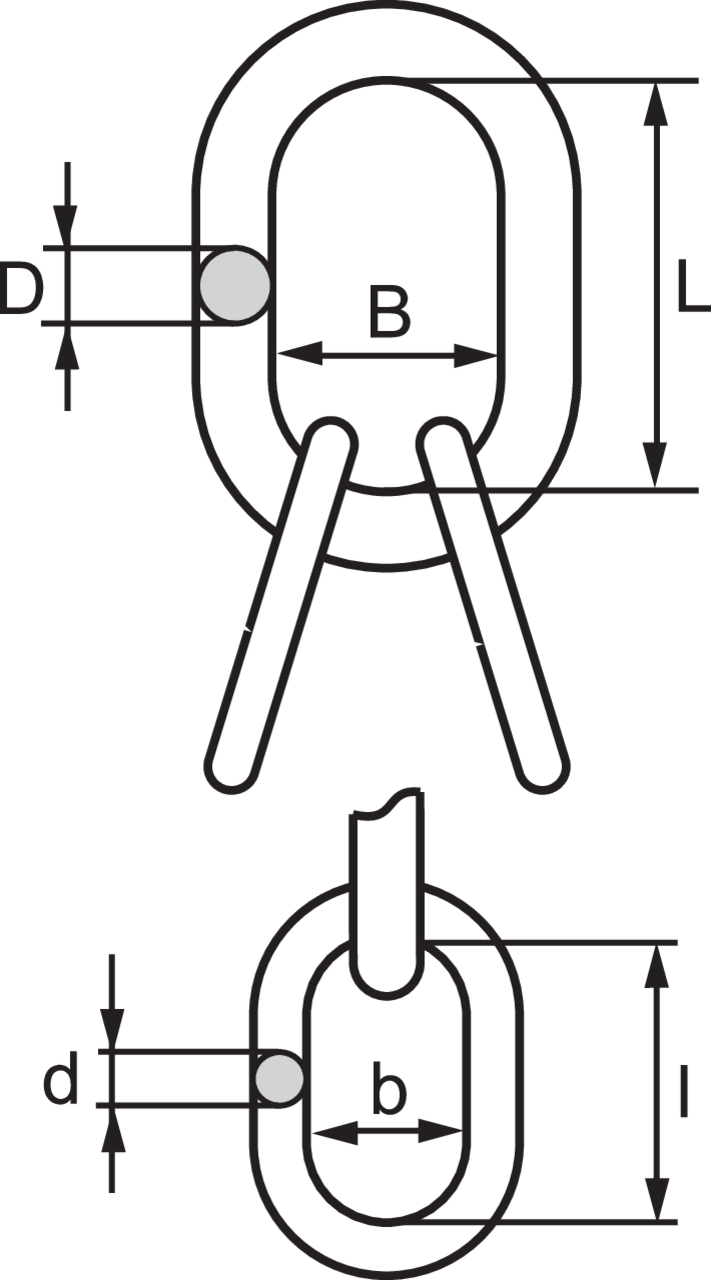

Joonis
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule
Tootekood Kood WLL
Ton
B (mm) D (mm) L (mm) l (mm) For chain gr 12 Ø (mm) Kaal
kg
11.0492136 VAWI 6-6 1,85 60 13 110 110 6 1,21
11.0492137 VAWI 7/8-6 3,35 75 16 135 110 7 1,98
11.0492139 VAWI 10-6 5,25 90 23 160 160 10 4,8
11.0492140 VAWI 13-6 8,9 100 27 180 180 13 7,38
11.0492141 VAWI 16-6 13,2 110 32 200 200 16 12,42
