pewag
General: Stainless steel eye sling hook, drop-forged. Safety latch available as sparepart.


  • Materjal: AISI 316 TI.
  • Pinnakate: Pickled and blasted.
  • Ohutustegur: 4:1.
  • Klass: 6
kwb HS S m
Vali allolevast tabelist sobivaim rida, seejärel lisa toode päringule
Tootekood Kood WLL
tonn

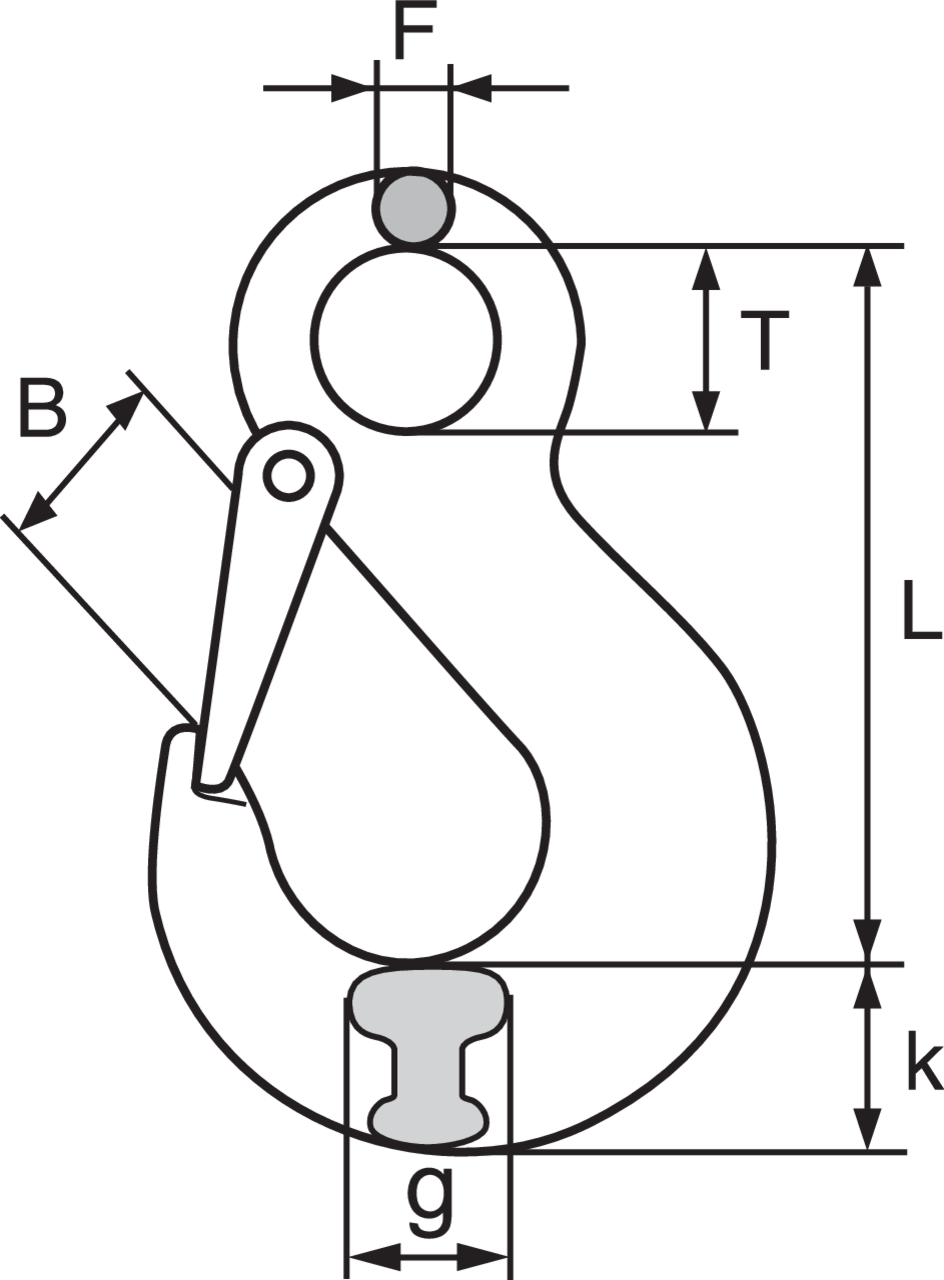

G (mm) For chain gr 6 Ø (mm) B (mm) F (mm) L (mm) T (mm) k (mm) Kaal
kg
CAD
11.1492147 HSWI 5 0,9 14 5 22 8 84 21 20 0,25
11.1492148 HSWI 7 1,6 20 7 32 13 112 27 29 0,7
11.1492149 HSWI 10 2,5 28 10 39 15 133 37 33 1,35
11.1492150 HSWI 13 4,25 35 13 51 18 172 48 43 2,6
11.1492151 HSWI 16* 6,3 44 16 66 24 213 55 51 4,8

CAD fail

CAD faili alla laadimiseks palun valige vastav toode ülalolevast tabelist ning vajutage "Laadi CAD" nupule. Peale CAD faili laadimist saate selle alla laadida.

Laadi CAD
Laadi alla
