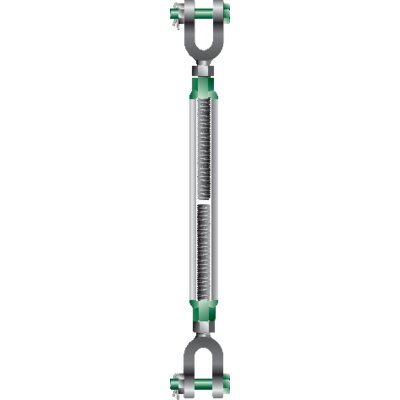

Green Pin
• Material : drop forged high tensile steel SAE 1035 or 1045
• Safety factor : MBL equals 5 x WLL
• Standard : generally to ASTM F1145-92 formerly U.S. Federal Specification FF-T-791b
• Finish : hot dipped galvanized
• Certification : a works certificate, proof load test certificate and/or EC Declaration of Conformity
can be supplied upon request
    • Ohutustegur: 5:1
    Kliki sobivale reale allolevas tabelis ning sisesta soovitud kogus

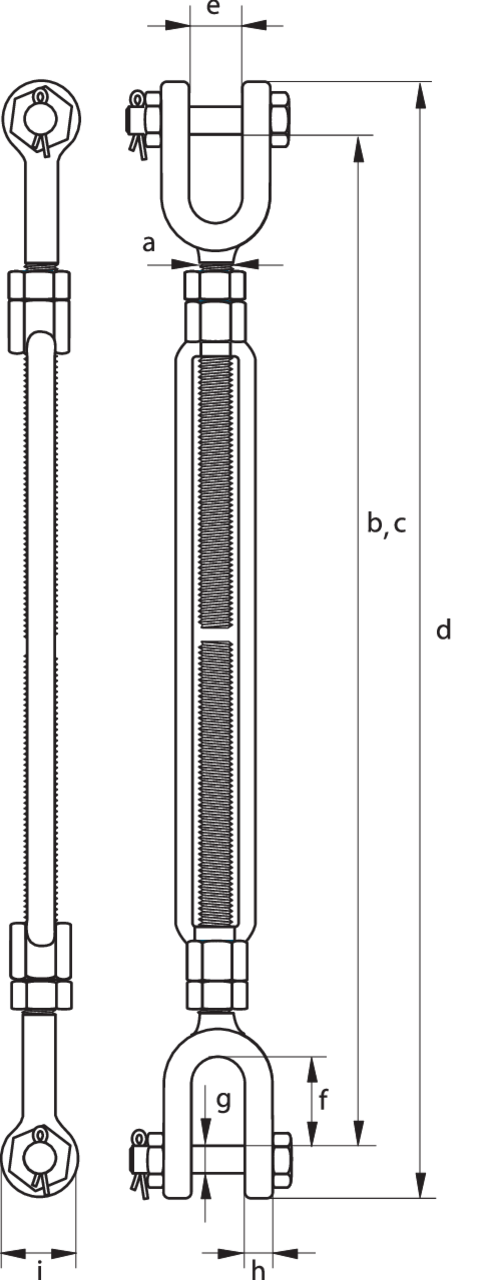

    Tootekood WLL
    tonn
    Diameter Thread a inch Poldi Ø
    mm
    take up inch Length closed position b
    mm
    Length open position c
    mm
    Length closed position d
    mm
    opening jaw e
    mm
    thickness jaw eye h
    mm
    diameter jaw eye i
    mm
    Length inside f Kaal
    kg
    CAD
    11.51SSGPGG1006 0,54 3/8 7 6 273 409 304 12 9 21 21 0,55 -
    11.51SSGPGG1206 1 1/2 10 6 304 435 343 16 11 25 26 0,96 -
    11.51SSGPGG1209 1 1/2 10 9 379 588 418 16 11 25 26 1,18 -
    11.51SSGPGG1212 1 1/2 10 12 455 740 494 16 11 25 26 1,5 -
    11.51SSGPGG1606 1,59 5/8 13 6 346 469 406 18 14 33 32 1,75 -
    11.51SSGPGG1609 1,59 5/8 13 9 421 622 480 18 14 33 32 2,14 -
    11.51SSGPGG1612 1,59 5/8 13 12 498 774 557 18 14 33 32 2,43 -
    11.51SSGPMBGG1906 2,36 3/4 16 6 369 487 439 24 16 41 38 2,7 -
    11.51SSGPMBGG1909 2,36 3/4 16 9 444 640 514 24 16 41 38 3,23 -
    11.51SSGPMBGG1912 2,36 3/4 16 12 520 792 590 24 16 41 38 3,57 -
    11.51SSGPMBGG1918 2,36 3/4 16 18 670 1 096 740 24 16 41 38 4,55 -
    11.51SSGPMBGG2212 3,27 7/8 19 12 561 826 638 27 19 48 42 5,22 -
    11.51SSGPMBGG2218 3,27 7/8 19 18 713 1 132 790 27 19 48 42 6,56 -
    11.51SSGPMBGG2518 4,5 1 22 24 903 1 470 988 31 20 54 50 8,9 -
    11.51SSGPMBGG2524 4,54 1 22 6 447 554 532 31 20 54 50 5,54 -
    11.51SSGPMBGG2506 4,54 1 22 12 598 859 683 31 20 54 50 6,96 -
    11.51SSGPMBGG2512 4,54 1 22 18 750 1 168 835 31 20 54 50 8,4 -
    11.51SSGPMBGG3212 6,9 1 1/4 28 12 643 916 748 44 26 68 71 11,9 -
    11.51SSGPMBGG3218 6,9 1 1/4 28 18 805 1 230 910 44 26 68 71 13,6 -
    11.51SSGPMBGG3224 6,9 1 1/4 28 24 964 1 541 1 069 44 26 68 71 14,2 -
    11.51SSGPMBGG3812 9,71 1 1/2 35 12 675 942 806 52 28 80 71 18,5 -
    11.51SSGPMBGG3818 9,71 1 1/2 35 18 825 1 244 956 52 28 80 71 19,3 -
    11.51SSGPMBGG3824 9,71 1 1/2 35 24 980 1 551 1 111 52 28 80 71 22 -
    11.51SSGPMBGG4518 12,7 1 3/4 41 18 938 1 316 1 092 60 33 90 86 30 -
    11.51SSGPMBGG4524 12,7 1 3/4 41 24 1 089 1 621 1 243 60 33 90 86 33 -
    11.51SSGPMBGG5024 16,8 2 50 24 1 153 1 673 1 338 63 40 107 93 50 -
    11.51SSGPMBGG6424 27,2 2 1/2 57 24 1 255 1 831 1 480 75 41 143 114 92 -
    11.51SSGPMBGG6924 34 2 3/4 70 24 1 348 1 882 1 604 90 41 158 110 109

    CAD fail

    CAD faili alla laadimiseks palun valige vastav toode ülalolevast tabelist ning vajutage "Laadi CAD" nupule. Peale CAD faili laadimist saate selle alla laadida.
