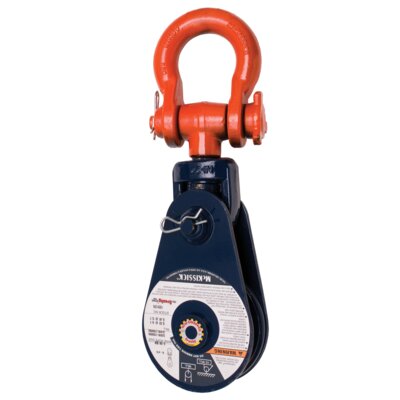

The McKissick snatch block 419 Light Champion from Crosby is a snatch block fittted with a shackle. Available from WLL 2  up to 15 T.
Can be delivered with bronze bushing (BB) and from WLL 8 T also with roller bearing (RB).

Features:

  • Bolt for opening feature is retained, to ensure no lost bolts.
  • Opening feature permits easy insertion of rope without reeving, or while the block is suspended.
  • Center pin equipped with pressure lube fitting.
  • All sizes feature sheave grooves suited for a range of wire line diameters.
  • Meets or exceeds all requirements of ASME B30.26 including identification ductility, design factor, proof load and temperature requirements.
  • Meet other critical performance requirements including fatigue life and material traceability, not addressed by ASME B30.26.
  • Material: Forged steel.
  • Marking: CE-marked
  • Safety factor: 4:1

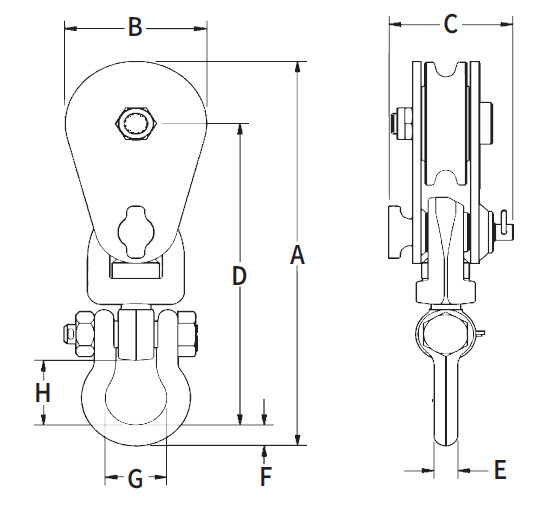

Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Sheave dia.
mm
Bearing Code Wire Rope Size
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
Weight
kg
CAD
16.15109037 419 w/eye 2 76 BB 8-10 220 76 67 168 14 14 35 35 1,8
16.15109091 419 2 76 BB 8-10 235 76 67 185 13 13 34 40 2,3
16.15109064 419 4 114 BB 10-13 340 108 79 268 16 18 43 51 5,4
16.15109126 419 8 152 BB 16-19 481 152 106 373 32 32 76 88 12,7
16.15109153 419 8 152 RB 16-19 481 152 106 373 32 32 76 88 12,7
16.15109224 419 8 203 BB 16-19 533 206 106 398 32 32 76 88 15
16.15109251 419 8 203 RB 16-19 533 206 106 398 32 32 76 88 15
16.15109322 419 8 254 BB 16-19 586 257 106 425 32 32 76 88 19,5
16.15109359 419 8 254 RB 16-19 586 257 106 425 32 32 76 88 19,5
16.15202961 419 8 305 BB 16-19 657 308 106 471 32 32 76 88 24,9
16.15169347 419 8 305 RB 16-19 657 308 106 471 32 32 76 88 24,9
16.15109420 419 8 356 BB 16-19 695 359 106 484 32 32 76 88 30,4
16.15109457 419 8 356 RB 16-19 695 359 106 484 32 32 76 88 30,4

Bearing codes:
BB = Bronze Bushing
RB = Roller Bearing

Download CAD
