Blue Wave

General: Fittings pressed on single steel wire rope.

  • Material: Stainless acid proof steel AISI 316.
  • Finish: Polished.
Select a row from the table below, then click the add to quote button

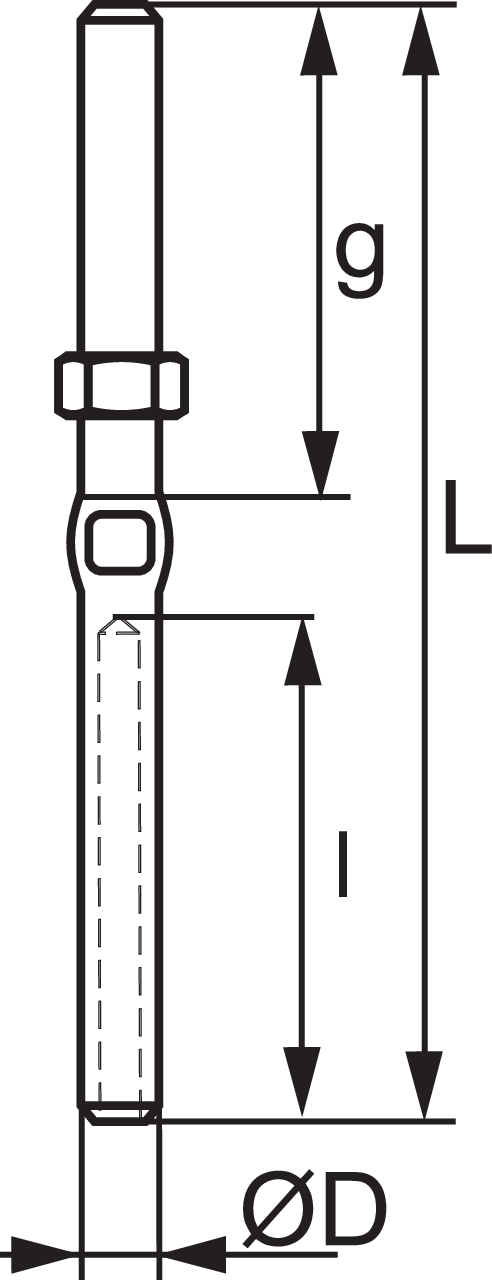

Art No Code Thread Wire Ø (mm) L (mm) l (mm) Ø D (mm) g Weight
kg/100m
CAD
10.07900306N TTM-3 M6 3 100 38 6,4 48 1,4
10.07900408N TTM-4 M8 4 117 45 7,5 57 2
10.07900510N TTM-5 M10 5 130 51 9,0 63 2,4
10.07900612N TTM-6 M12 6 162 64 13 80 4
10.07900714N TTM-7 M14 7 180 70 14 89 8,4
10.07900816N TTM-8 M16 8 203 83 16 100 19,2
10.07901020N TTM-10 M20 10 230 89 18 120 35
10.07901220N TTM-12 M20 12 249 105 20 120 45
*Other thread sizes and types on request.
