Ropeblock

General: Forged eye fittings for embedment with cast compound.

  • Finish: Galvanized.
  • Note: For intermediate rope diameter select fittings with nearest following size.
  • Warning: Compare the spelter's and the wire rope's minimum breaking load.
Select a row from the table below, then click the add to quote button

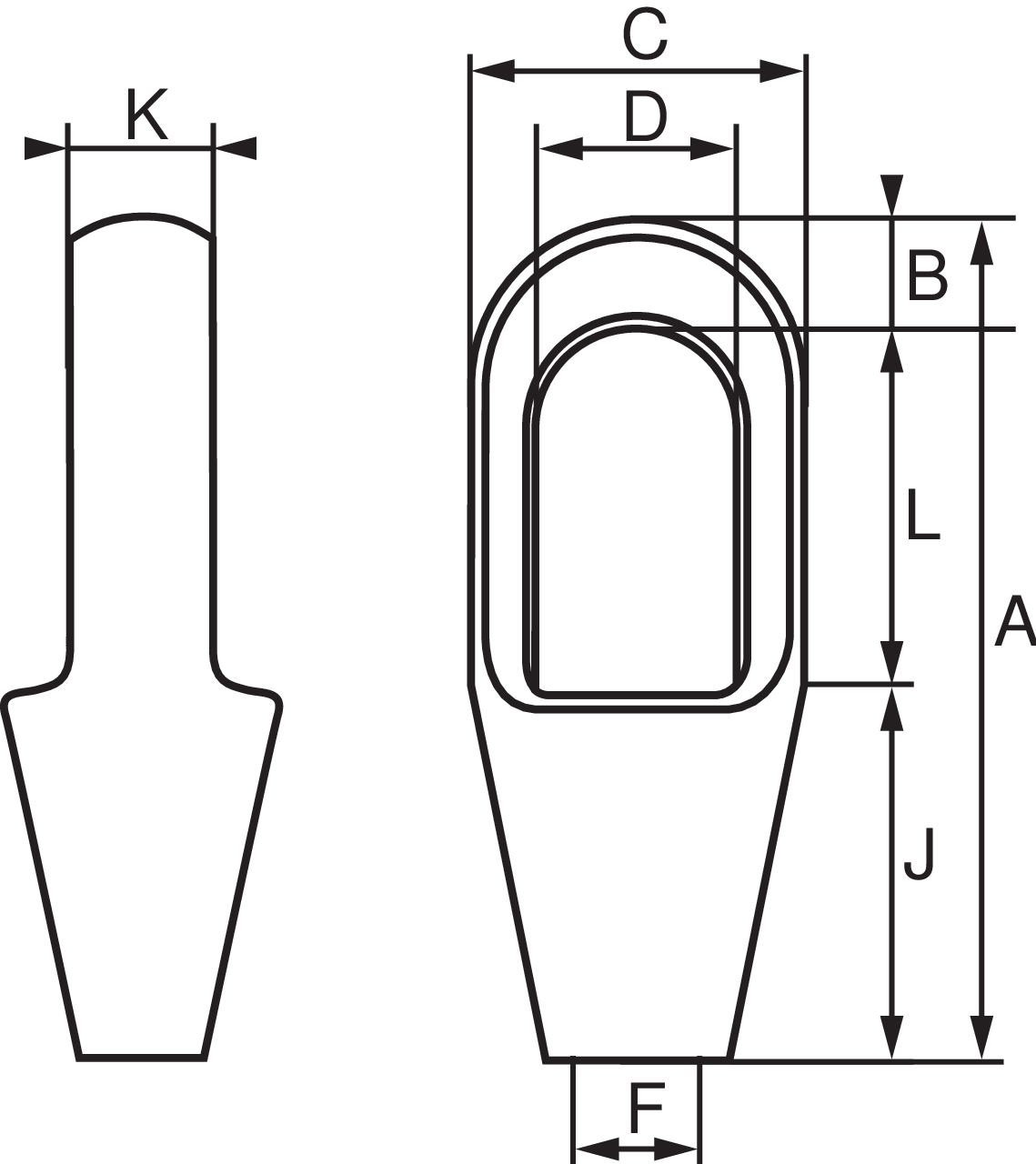

Код продукции Code MBL Diameter
mm
A
mm
B
mm
C
mm
D
mm
F
mm
J
mm
K
mm
L
mm
Code MBL Diameter
mm
A
mm
B
mm
C
mm
D
mm
F
mm
J
mm
K
mm
L
mm
Weight
kg
CAD
10.10CSS296G G-71 8 6-7 101 11 37 22 8,5 50 13 40 G-71 8 6-7 101 11 37 22 8,5 50 13 40 0,3
10.10CSS297G G-72 12 8-10 119 14 43 25 12 57 17,5 48 G-72 12 8-10 119 14 43 25 12 57 17,5 48 0,5
10.10CSS298G G-73 20 11-13 140 17,5 51 30 14 63,5 22,5 59 G-73 20 11-13 140 17,5 51 30 14 63,5 22,5 59 0,7
10.10CSS299G G-74 25 14-16 162 20,6 67 36 17,5 76 26 65 G-74 25 14-16 162 20,6 67 36 17,5 76 26 65 1,3
10.10CSS200G G-75 40 18-19 194 27 76 42 21 89 32 78 G-75 40 18-19 194 27 76 42 21 89 32 78 2,1
10.10CSS201G G-76 55 20-22 224 33 92 47 24 101 38 90 G-76 55 20-22 224 33 92 47 24 101 38 90 3,6
10.10CSS204G G-77 75 23-26 253 36 104 57 28 114 44 103 G-77 75 23-26 253 36 104 57 28 114 44 103 5,3
10.10CSS207G G-78 90 27-30 282 39 114 63 32 127 51 116 G-78 90 27-30 282 39 114 63 32 127 51 116 7
10.10CSS212G G-79 125 31-36 312 43 127 70 38 139 57 130 G-79 125 31-36 312 43 127 70 38 139 57 130 9,7
10.10CSS215G G-80 150 37-39 358 51 136 79 41 152 63 155 G-80 150 37-39 358 51 136 79 41 152 63 155 13
10.10CSS217G G-81 170 40-42 390 54 146 83 44 165 70 171 G-81 170 40-42 390 54 146 83 44 165 70 171 17
10.10CSS219G G-82 225 43-48 443 55 171 93 51 190 76 198 G-82 225 43-48 443 55 171 93 51 190 76 198 26
10.10CSS222G G-83 280 49-54 502 62 193 100 57 216 82 224 G-83 280 49-54 502 62 193 100 57 216 82 224 37,5
10.10CSS224G G-84 360 55-60 548 73 216 112 63 228 92 247 G-84 360 55-60 548 73 216 112 63 228 92 247 50
