General: Chain for different applications.

Standard: DIN 766.

  • Material: Grade 2.
  • Finish: Zink-platined.
  • Warning: Not for lifting.
  • Grade: 2
Select a row from the table below, then click the add to quote button
Part Code Code Diameter
mm
Length
m
Breaking force
kN
Breaking force
kP

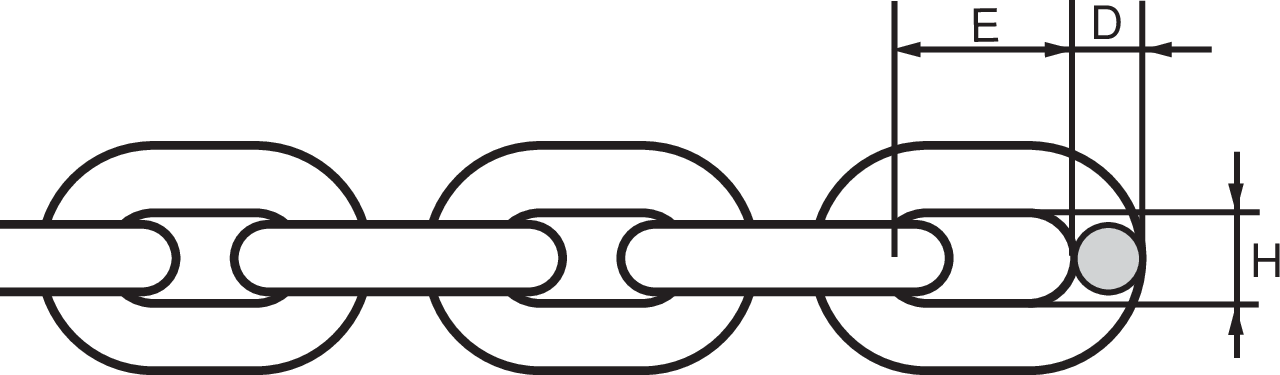

E
mm
H
mm
H
mm
Weight
kg/m
CAD
11.60766030ER50 KLZ-3-2 3 25 3,4 340 10 4,5 0,2
11.60766040ER50 KLZ-4-2 4 25 6 610 10 4,5 0,3
11.60766050ER50 KLZ-5-2 5 25 9,5 960 19 8 0,5
11.60766060ER30 KLZ-6-2 6 25 13,5 1 370 20 9 0,8
11.60766080ER15 KLZ-8-2 8 25 24 2 440 25 11 1,4
11.60766100ER15 KLZ-10-2 10 25 40 4 070 28 14 2,3

Download CAD

Description

Get CAD
скачать

Bobbin

Art No
Code Chain Ø (D) E H Length Mass
    mm ˜ ˜ m kg/m
11.60KLZS030.2 KLZS-3-2 3 10 4,5 50 0,2
11.60KLZS040.2 KLZS-4-2 4 17 7 50 0,4
11.601502050GR25 KLZS-5-2 5 19 8 30 0,5
11.601502060GR25 KLZS-6-2 6 19 8 30 0,8
11.60KLZS080.2 KLZS-8-2 8 24 10 15 1,4
11.60KLZS100.2 KLZS-10-2 10 28 14 15 2,3
