• Material: Alloy steel grade 8.
  • Marking: Code and grade.
  • Finish: Painted.
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

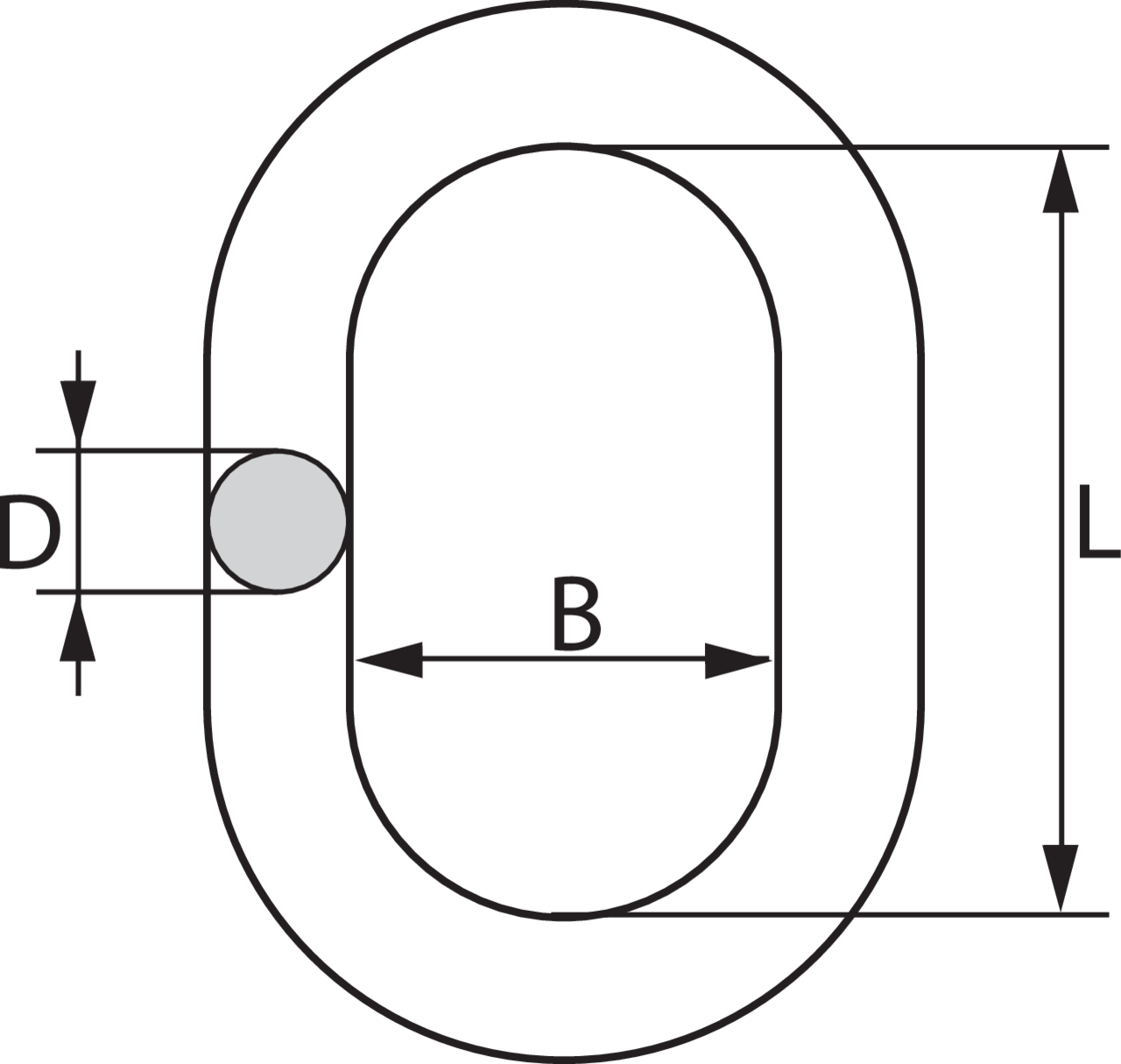

Part Code Code WLL
ton
L
mm
B
mm
D
mm
Weight
kg
CAD
11.0125712 ML-86-8 2 110 60 13 0,35
11.0125713 ML-108-8 3,15 120 70 16 0,62
11.0125714 ML-1310-8 5,3 135 75 18 0,8
11.0125715 ML-1613-8 8 160 90 22 1,5
11.0125719 ML-2622-8 21,2 260 140 36 6,3
11.0125721 ML-3632-8 45 350 190 50 17
