• Material: Alloy steel grade 8.
  • Marking: According to standard, CE-marked, Code and grade.
  • Finish: Painted.
  • Standard: EN 1677-2
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

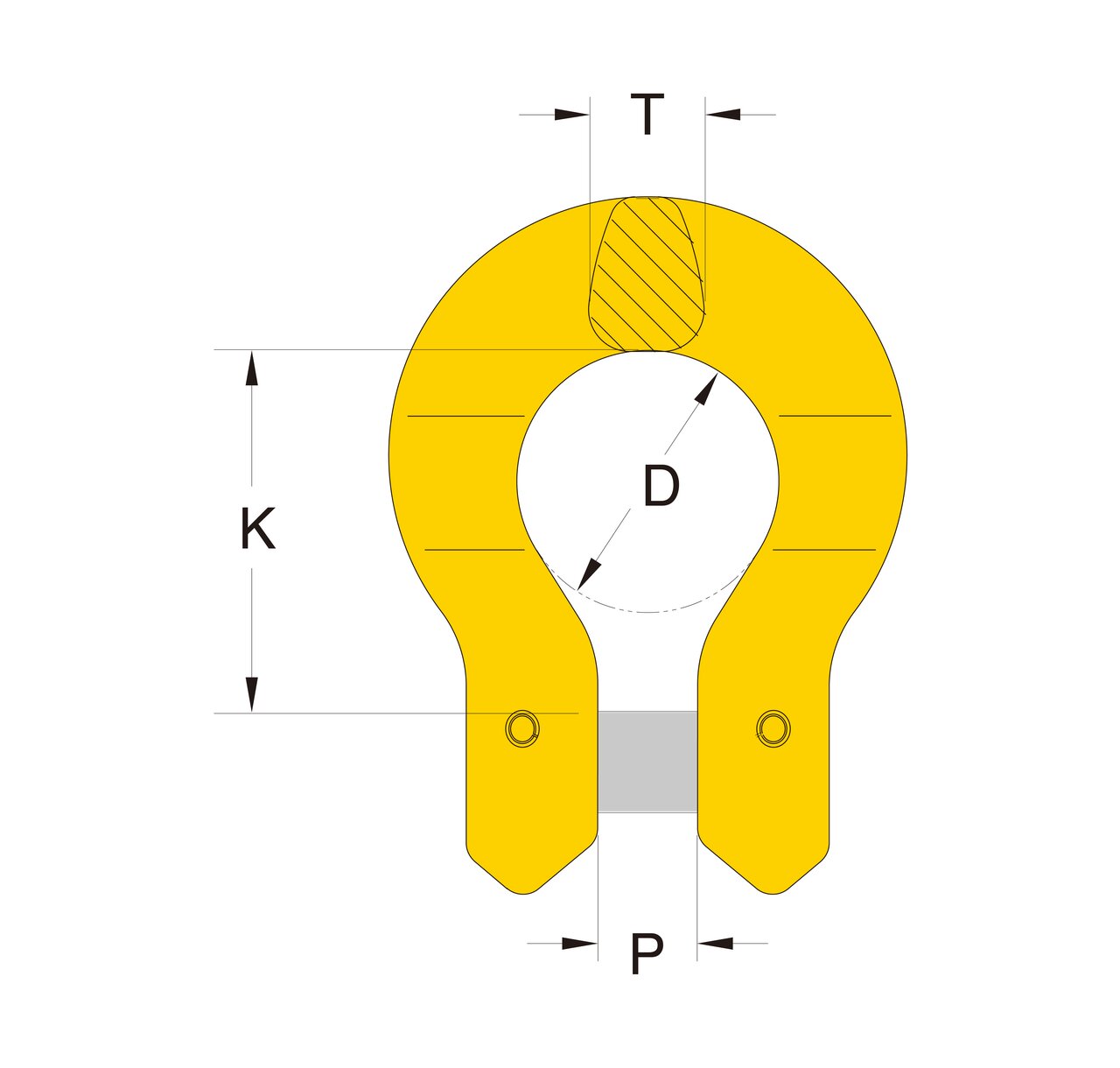

Код продукции WLL
ton
For chain gr 8 Ø
mm
D
mm
K
mm
P
mm
T
mm
Weight
kg
CAD
11.05OME56 1,12 6 21 30 8 9 0,1
11.05OME78 2 7-8 27 36 9 11 0,2
11.05OME10 3,15 10 32 44 12 15 0,4
11.05OME13 5,3 13 42 55 16 17 0,8
11.05OME16 8 16 50 69 18 22 1,2
11.05OME20 12,5 18-20 58 71 21 28 2,1
