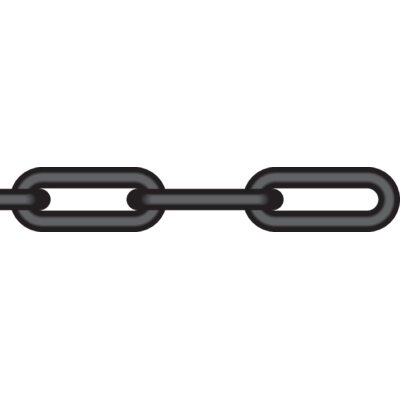

General: Chain for lashing of timber on road vehicle.
Power test: 60% Of breaking force.

  • Material: Alloy steel grade 8.
  • Marking: According to standard, One link per m chain is marked with grade.
  • Finish: Painted.
  • Standard: EN 12195-3
  • Note: Not to be heat-treated.
  • Warning: Not for lifting.
  • Класс: 8
Выберите соответствующую строку в таблице ниже и щелкните значок корзины покупок.
Код товара Chain diameter
mm
Breaking force
kP
D
mm
E
mm
H
mm
Вес
kg/m
14.14LLP06.8 6 4 609 6 35 10 0,6
14.14LLP09.8 9 10 401 9 53 15 1,4
14.14LLP11.8 11 15 703 11 64 18 2,1
14.14LLP13.8 13 21 617 13 80 25 2,6
14.14LLP16.8 16 32 834 16 88 27 4,6
* LC = Lashing capacity, safety factor 2:1.
