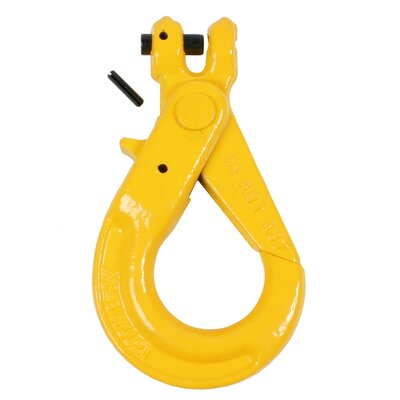

Haklift

The chain is attached to the hook with clevis without a connecting link. The hook locks automatically when lifting starts.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Класс: 8
Выберите соответствующую строку в таблице ниже и щелкните значок корзины покупок.

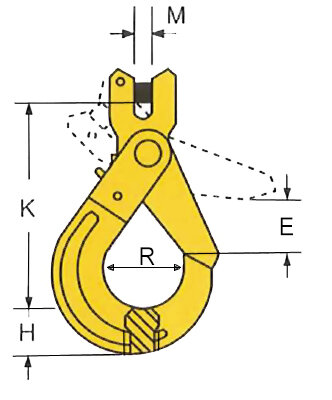

Код товара WLL
ton
For chain dia.
mm
K
mm
H
mm
E
mm
M
mm
R
mm
Вес
kg
11.1525021 1,12 6 95 19 29 8 34 0,5
11.1525022 2 7/8 121 24 34 9 46 0,8
11.1525023 3,15 10 146 30 44 12 56 1,5
11.1525024 5,3 13 182 40 52 15 69 2,8
11.1525025 8 16 218 50 60 18 86 5,6
11.1525026 12,5 20 240 55 83 25 100 7,5
