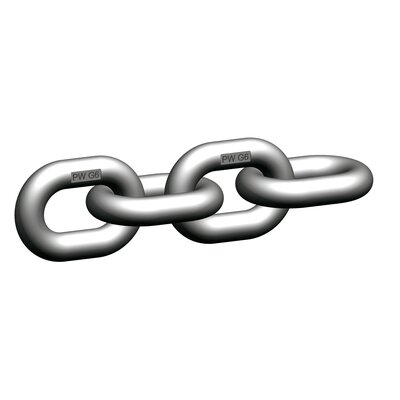

Stainless steel lifting chain, electrically welded and stamped, guaranteed compatible with Connex CWI connectors.

Standard: Similar DIN 5687-1

The WOX chain is particularly suited for use in water and wastewater applications. It can also be used in connection with chemicals and food products; however, restrictions will apply.

  • Material: 1.4404 (AISI 316L).
  • Marking: According to standard
  • Finish: Brightly polished.
  • Standard: EN 818-2
  • Safety factor: 4:1
  • Класс: 6
Выберите соответствующую строку в таблице ниже и щелкните значок корзины покупок.
Код товара Chain diameter
mm
WLL
ton
Min. breaking force
kN

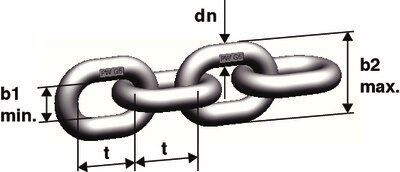

Inside width b1 min
mm
Outside width b2 max.
mm
t
mm
Вес
kg/m
CAD
11.6337931 4 0,4 16 5,8 14,8 12 0,4
11.6338094 5 0,63 25 7,5 18,5 15,1 0,61
11.6338110 6 0,9 37,5 8 21,5 18 0,88
11.6338113 7 1,25 50 9,5 25,2 21 1,19
11.6338116 8 1,6 63 10,8 28,6 24 1,53
11.6339568 10 2,5 100 13,5 36,0 30 2,4
11.6339904 13 4,25 170 17,5 46,8 39 4,05
11.6340205 16 6,3 250 21,5 57,6 48 6
11.6383501 20 8 314 27 72 60 9,29 -
11.6392200 26 12 471 35 93,6 78 16,2 -
* WOX 20-5 is grade 5
** WOX 26-4+ is grade 4+
