Crosby

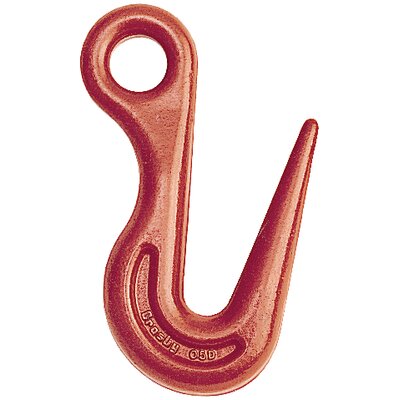

General: Deep straight throat permits efficient handling of flat plates or large cylindrical shapes.

  • Material: Forged alloy steel - Quenched and tempered.
  • Finish: Painted.
  • Note: Removed acid proof
  • Safety factor: 4:1
Выберите соответствующую строку в таблице ниже и щелкните значок корзины покупок.
Код товара Model WLL at tip of hook
ton
WLL at bottom of hook
ton
I.D. of eye Length
mm
Opening at top of hook Radius at bottom of hook Вес
kg
CAD

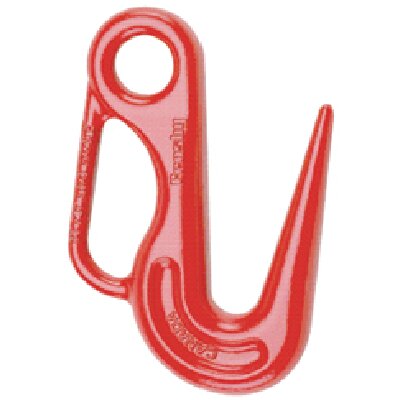

11.291028033 With Handle 1,8 6,8 35,0 246 71,4 15,9 2,9

Ultimate Load is 4 times the Working Load Limit.
