General: For lifting and transporting of steel plates from all positions (horizontal, vertical and sidelong), articulated lifting shackle. The TSU /STSU/TSU-R lifting clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered. The clamp is locked in closed as well as in open position.

  • Marking: Working load limit, jaw capacity and CE-marking.
  • Finish: Yellow painted.
  • Standard: EN 13155
  • Note: Min. load is 10% of WLL. The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HRC (345 HB, 1166 N/mm2).
  • Safety factor: 5:1
TSU_HR
TSU v2 2012
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

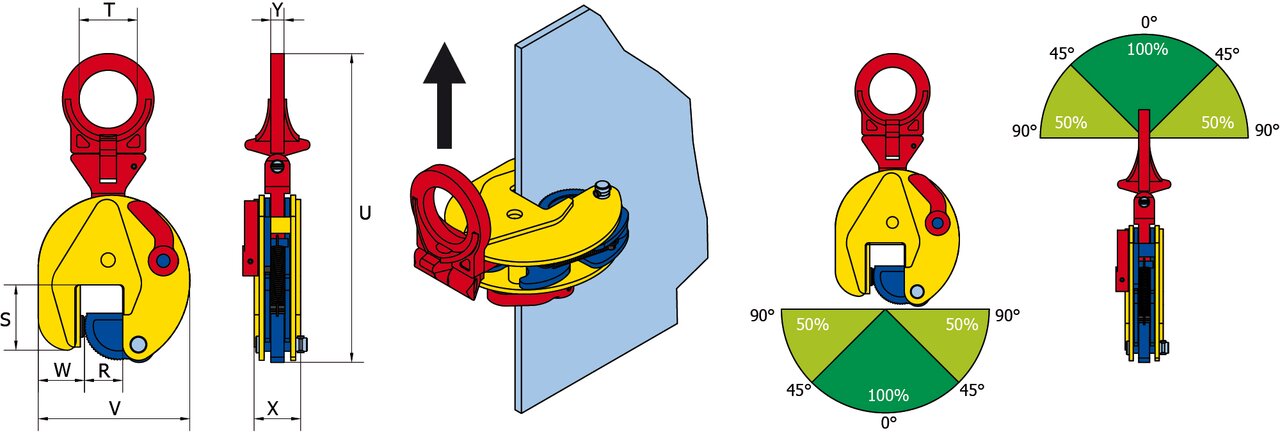

X (mm) Y (mm) Jaw opening R (mm) S (mm) T (mm) U (mm) V (mm) W (mm) Weight
kg
CAD
16.01855000 0.75 TSU 0,75 37 10 0-13 47 30 203 100 37 1,8
16.01865800 1 TSEU 1 47 15 0-25 56 50 292 141 37 3,8
16.01855601 2 TSEU* 2 56 16 0-35 78 70 372 183 56 8
16.01865331 3 TSEU* 3 56 16 0-35 78 70 372 183 56 8
16.01865441 4.5 TSU 4,5 77 20 0-25 85 70 429 203 60 16
16.01865301 4.5 TSEU 4,5 78 20 0-45 85 70 431 228 60 16,5
16.01865401 6 TSU 6 78 32 0-32 114 78 528 225 78 22
16.01856200 6 STSU 6 78 32 40-90 114 78 523 275 70 24
16.01865411 6 TSEU 6 78 32 0-50 114 78 527 259 82 24
16.01865601 7.5 TSU 7,5 82 32 0-40 111 78 567 246 76 27
16.01855400 7.5 TSEU 7,5 86 32 0-55 111 78 560 267 70 28
16.01856300 7.5 STSU 7,5 86 32 50-100 111 78 560 312 70 30
16.01855405 9 TSU 9 86 32 0-55 111 78 560 267 70 29
16.01855305 9 STSU 9 86 32 50-100 111 78 560 312 70 31
16.01865901 12 TSU 12 94 48 0-52 148 85 648 295 100 41
16.01856401 12 STSU 12 94 48 50-100 152 85 644 344 100 45
16.01955150 15 TSU 15 106 48 0-76 209 85 816 373 136 73
16.01966150 15 STSU 15 106 48 80-150 224 85 808 450 136 78
16.01955170 17 TSU 17 106 48 0-76 209 85 816 373 136 74
16.01955200 20 TSU 20 140 71 0-80 250 100 948 563 153 160
16.01966200 20 STSU 20 140 71 80-150 249 100 940 640 153 171
16.01955250 25 TSU 25 140 71 5-85 250 100 948 563 148 160
16.01966250 25 STSU 25 140 71 80-150 249 100 940 640 153 171
16.01955300 30 TSU 30 142 71 10-90 250 100 944 568 153 167
16.01966300 30 STSU 30 142 71 80-150 249 100 946 645 156 176,5
* Available with a remote control
