General: For vertical lifting and transporting without marking of products with parallel sides in various materials as steel, wood, plastic, concrete, marble etc. The clamp is locked in the open position. To perform lifting, the operator must activate the handle and hold it up while the force on the lifting eye is going upwards. When laying down the load, the clamp automaticly locksitself open. De pads are covered with special plastic to avoid dammaging of the load.

  • Finish: Yellow painted.
  • Note: The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HRC (345 HB, 1166 N/mm2).
  • Safety factor: 5:1
TBLC_HR
TBLC_m
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

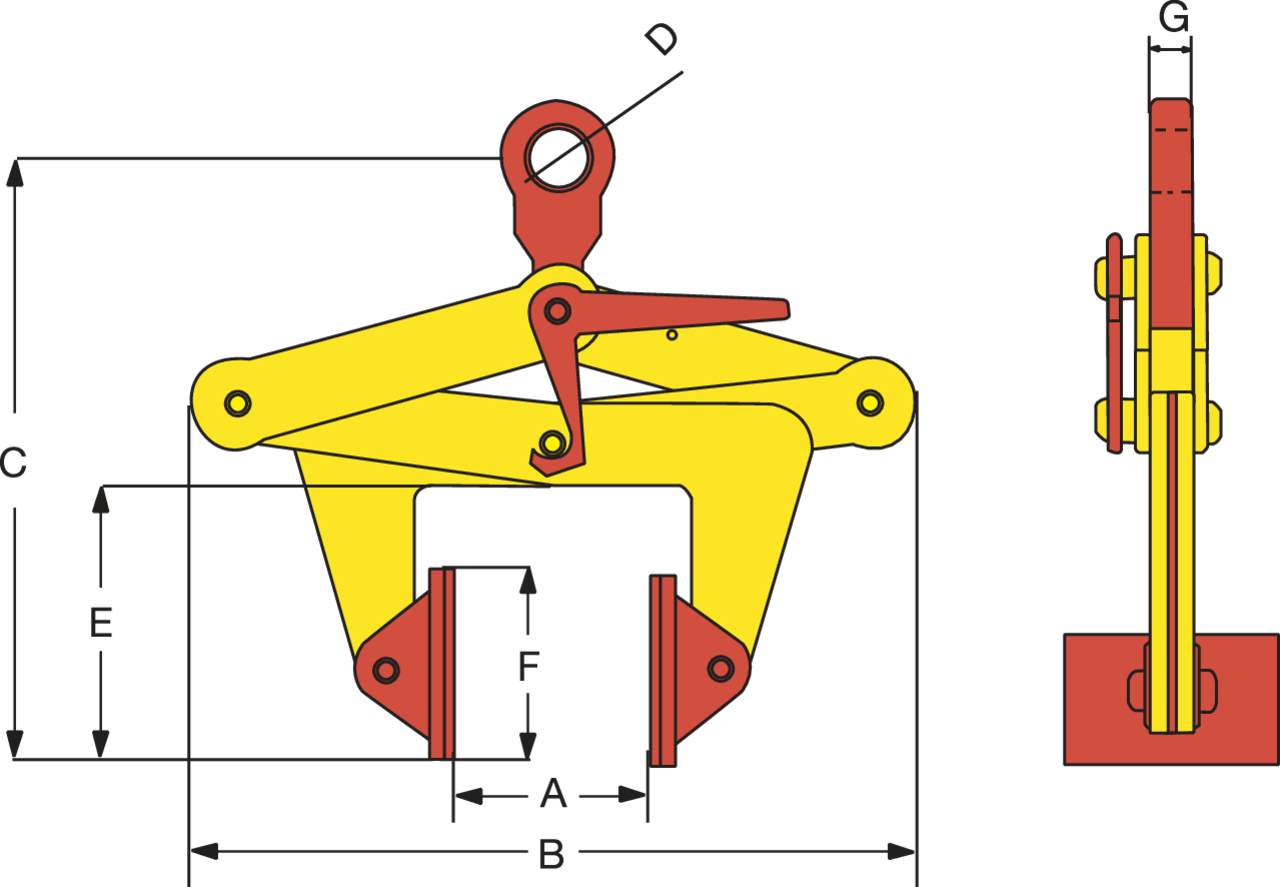

Jaw capacity (A) B min-max C min-max D (mm) E (mm) F (mm) Weight
kg
CAD
06.15TBLC0050 0.5 TBLC 0,5 30-110 270 - 325 270 - 420 45 95 80*70 7
06.15TBLC0100 1 TBLC 1 100-230 425 - 530 360 - 610 45 120 80*70 12,3
06.15TBLC0200 2 TBLC 2 220-360 580 - 675 400 - 680 45 140 80*70 18
06.15TBLC0300 3 TBLC 3 350-500 725 - 835 490 - 840 64 178 100*90 33
