General: For handling standard pallets from the short side.
Design: Horizontal boom. The lifting eye must be moved to its respective position for lifting empty or loaded.
Proof: Batch proof 1,5 x max load.

  • Material: Hollow-beam and plate of high-strength structural steel.
  • Marking: Maximum load and CE-marking.
  • Finish: Yellow painted.
  • Note: Other sizes and designs are available upon request. This item is easily adjustable for customer’s requirements and particuarly suitable where there is restricted head room.
6610-11m_new._225mm
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

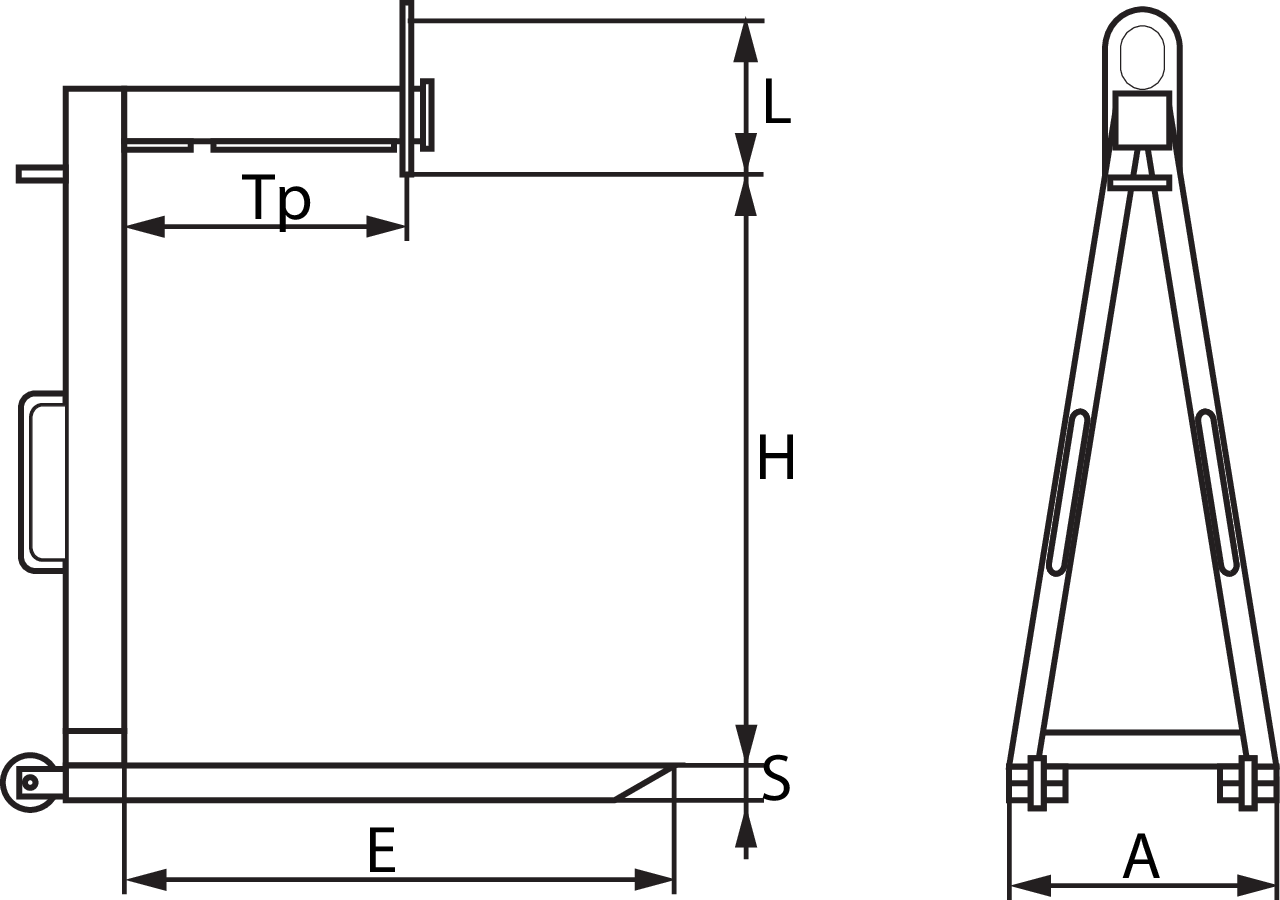

Tp WLL A (mm) E (mm) H (mm) L (mm) S (mm) Weight
kg
CAD
13.306010 6010 1,5 650 560 1 150 1 300 360 60 130
13.306011 6011 2,5 650 560 1 150 1 300 380 60 150
