pewag

For pewag winner connex system. Load binder with optimized lever length. 25% higher lashing capacity than grade 8 ratchet.

  • Material: Alloy steel grade 10.
  • Marking: According to standard, Pewag or PW, winner 10, H16, CE, batch code and type.
  • Finish: Orange powder coated.
  • Standard: EN 12195-3
  • Safety factor: 2:1.
  • Grade: 10
Loadbinder

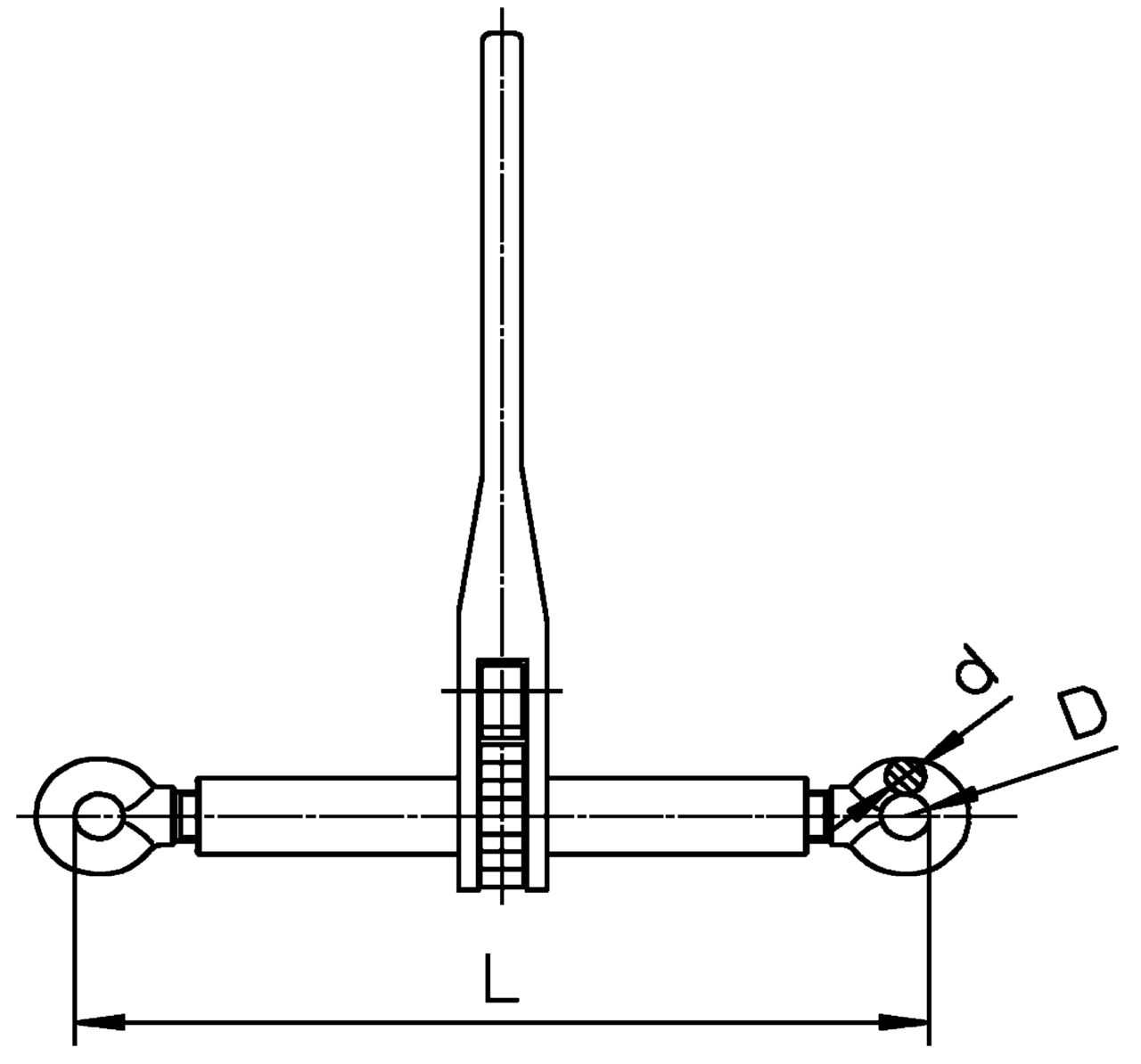

RLS-S drawing
Select a row from the table below, then click the add to quote button
Part Code Code LC
kN
STF
daN
Marking Tension distance
mm
Lever length I
mm
L closed L open D
mm
Weight
kg
CAD
14.107309 RSW 7/8 50 1,9 Type A 145 237 355 500 16 3,2
14.107305 RSW 10 80 3 Type B 145 355 365 510 18 3,8
14.107307 RSW 13 134 2,5 Type C 290 359 576 866 22 9,9
