General: Weldable lifting point. High-tensile eyebolts pewag profilift eta, for welding onto machine parts or vehicle bodies. Ideal for hanging of lifting and lashing parts. Due to the integrated spring, the ring will be kept in each requested position.
The instructions according to DIN EN ISO 14341 are valid for the welding. The welding may only be carried out by a welding operator with a valid qualification according to EN 287-1.
The lifting points will be packed individually and together with a user manual and welding instructions.

Standard: The weldable lifting point PLE is manufactured according to EG-Machine Directive 2006/42/EG and tested according to EN 1677-1.

Permissible usage
Load capacity acc. to the inspection certificate respectively table of WLL in the mentioned directions of pull (see picture 1 and 2).

Non permissible usage
Make sure when choosing the assembly that improper load can not arise e.g. if:
• The direction of pull is obstructed
• Direction of pull is not in the foreseen area
• Loading ring rests against edges and load

  • Material: Alloy steel grade 8.
  • Marking: WLL and the load capacity is clearly marked on the welding pad.
  • Finish: Painted.
  • Standard: EN 1677-1
  • Safety factor: 4:1.
  • Grade: 8
Stamping PLE
Picture 1
Picture 2
Picture 3

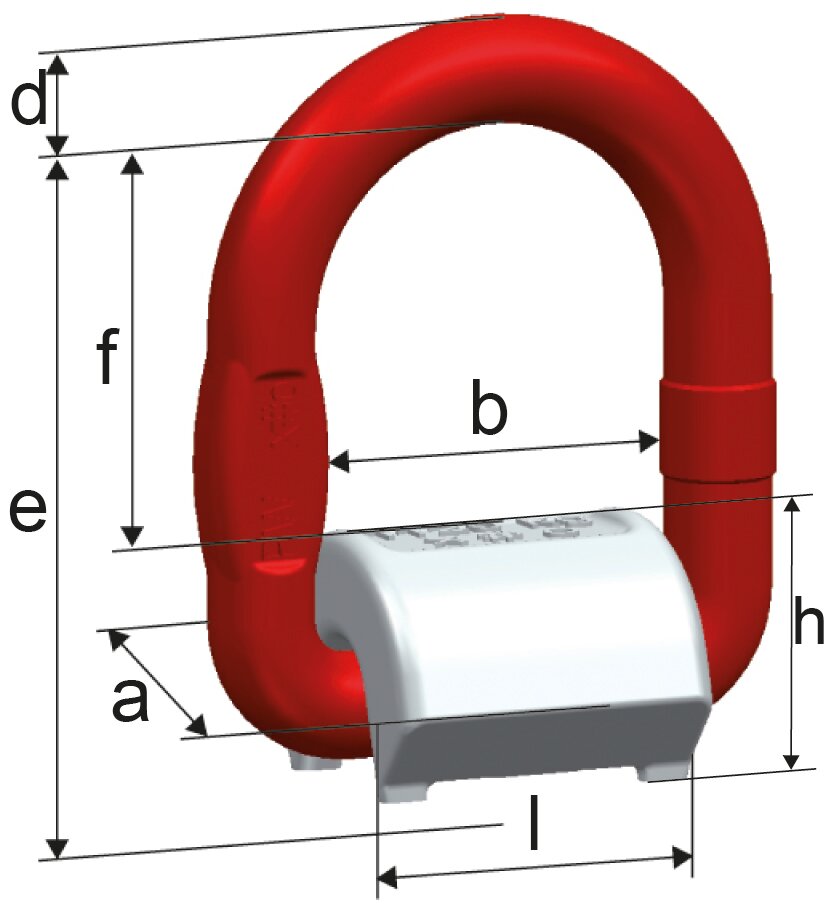

PLE mit Bemassung
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton
A (mm) B (mm) D (mm) e (mm) f (mm) h (mm) l (mm) Weight
kg
CAD
11.4192458 PLE/N 6 1,12 36 40 11 67 42 26 35 0,31
11.4192459 PLE/N 8 2 37 42 13 73 45 28 37 0,4
11.4192460 PLE/N 10 3,15 41 45 16,5 80 47 34 40 0,63
11.4164471 PLE/N 13 5,3 61 55 22 97 53 44 50 1,46
11.4192462 PLE/N 16 8 63 70 25 120 73 48 64 2,3
11.4192463 PLE/N 22 15 89 97 33 163 92 70 90 5,4

Download CAD

Description

Get CAD
Download
Method of lifting


Number of legs

1
1
2
2
2
2
3+4
3+4
2
3+4
Angle of inclination

90°
90°
0°-45°
45°-60°
0°-45°
45°-60°
asymm.
asymm.
Code
Load capacity
Load capacity










tons
tons









PLE/N 6
1,12
1,12
1,12
2,24
2,24
1,5
1,12
2,3
1,6
1,12
1,12
PLE/N 8
2
2
2
4
4
2,8
2
4,2
3
2
2
PLE/N 10
3,15
3,15
3,15
6,3
6,3
4,4
3,15
6,6
4,7
3,15
3,15
PLE/N 13
5,3
5,3
5,3
10,6
10,6
7,4
5,3
11,2
7,9
5,3
5,3
PLE/N 16
8
8
8
16
16
11,3
8
16,9
12
8
8
PLE/N 22
15
15
15
30
30
21
15
31,8
22,5
15
15
