pewag

Screwable, 360° rotatable lifting point. The load ring is 180° movable and can be positioned at any required angle due to its replaceable and patented spring. Likewise interchangeable is the hexagon-special screw of grade 10.9 material, which is secured against loss.

The screw is 100% crack-tested as well as covered with a chromate VI-free protection against corrosion. It can be tightened with a hexagon wrench or spanner wrench.

Pewag winner profilift beta is available with metric or UNC-thread, whereas the lifting points with metric thread are also obtainable with customized thread lengths.

Permissible usage
Load capacity acc. to the inspection certificate respectively table of WLL in the mentioned directions of pull – see picture 1 and 2.

Non permissible usage
Make sure when choosing the assembly that improper load can not arise e.g. if:

  • The direction of pull is obstructed.
  • Direction of pull is not in the foreseen area (see picture 3).
  • Loading ring rests against edges or load (picture 4).

The load ring must be placed in the direction of pull before loading – do not turn under load.

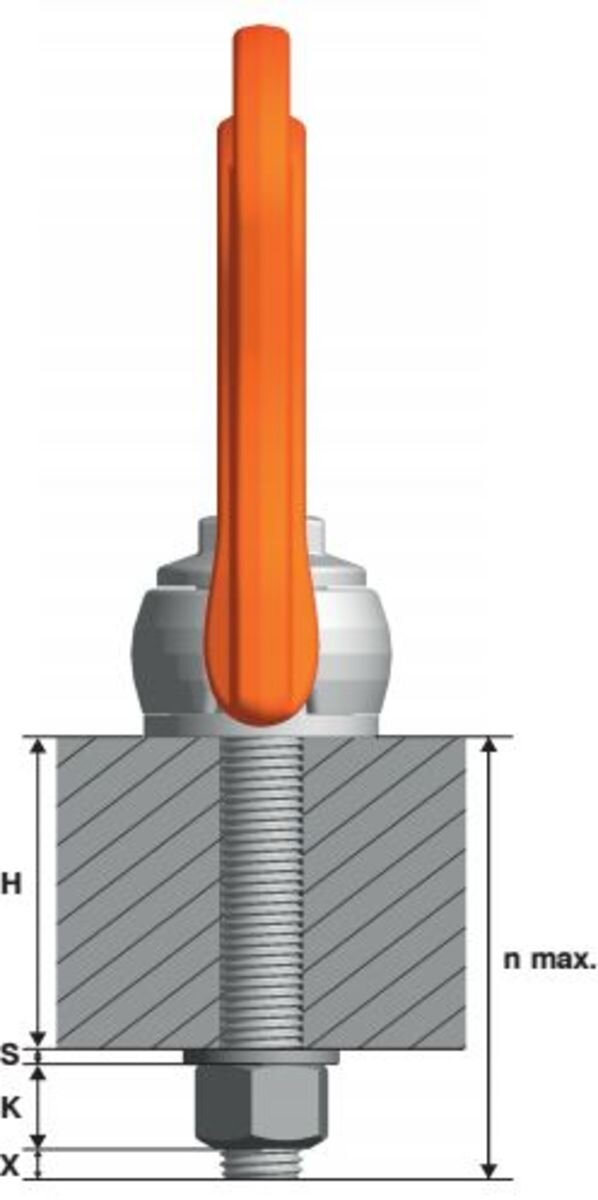

To calculate the necessary thread length (L):
L= H + S + K + X

H = Material height
S = Thickness of the washer
K = Height of the nut (depending on the thread size of the screw)
X = Excess length of the screw (twofold pitch of the screw)
L max. = n max.

pewag provides, along with the standard and maximum thread lengths, specially customised thread lengths. Supplied customised and maxium thread lengths include a washer and a crack-tested, corrosion-proofed screw nut.

  • Material: Alloy steel grade 10.
  • Marking: WLL, thread size and an individual serial number.
  • Safety factor: 5:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

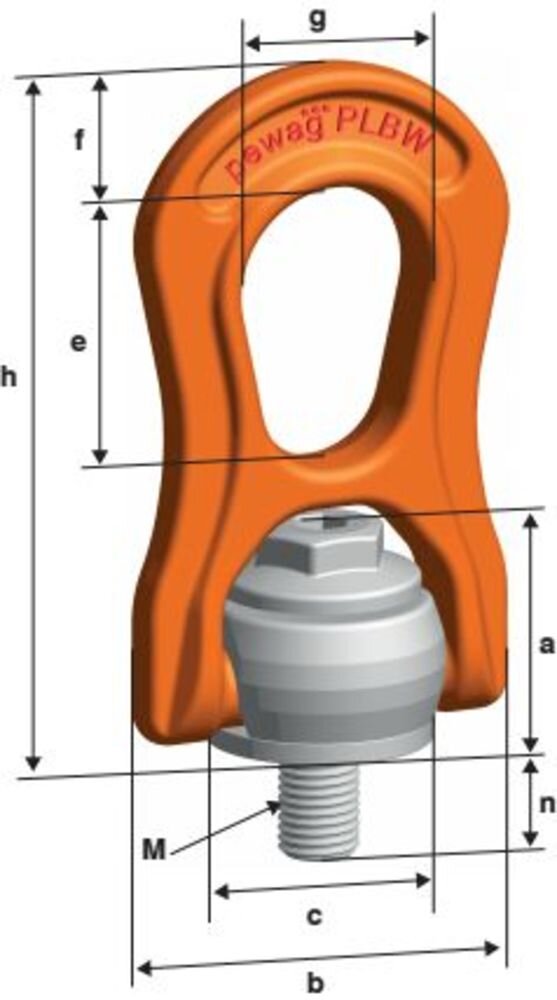

Part Code Code WLL
ton
Thread a
mm
b
mm
c
mm
e
mm
f
mm
g h
mm
n
mm
n max
mm
Weight
kg
CAD
11.4214229 PLBW 0,3 t 0,3 M8 29 56 30 38 18 27 94 13 80 0,32
11.4214230 PLBW 0,6 t 0,6 M10 29 56 30 38 18 27 94 15 100 0,33
11.4214236 PLBW 1 t 1 M12 29 56 30 38 18 27 94 17 180 0,34
11.4214231 PLBW 1,3 t 1,3 M14 43 79 45 55 25 38 138 22 220 1,03
11.4214232 PLBW 1,6 t 1,6 M16 43 79 45 55 25 38 138 24 260 1,04
11.4214237 PLBW 2 t 2 M18 43 79 45 55 25 38 138 27 295 1,07
11.4214188 PLBW 2,5 t 2,5 M20 43 79 45 55 25 38 138 30 335 1,08
11.4214238 PLBW 3 t 3 M22 64 118 68 85 38 58 209 33 355 3,5
11.4214239 PLBW 4 t 4 M24 64 118 68 85 38 58 209 36 355 3,53
11.4214240 PLBW 5 t 5 M27 64 118 68 85 38 58 209 40 355 3,58
11.4214241 PLBW 6,3 t 6,3 M30 64 118 68 85 38 58 209 45 355 3,66
11.4214242 PLBW 8 t 8 M33 106 188 108 132 60 91 331 54 328 14,5
11.4214233 PLBW 10 t 10 M36 106 188 108 132 60 91 331 59 328 14,6
11.4214234 PLBW 12,5 t 12,5 M42 106 188 108 132 60 91 331 69 328 14,9
11.4214235 PLBW 15 t 15 M48 106 188 108 132 60 91 331 74 328 15,2
Attention: Subject to technical changes.

















Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
Method of lifting



drawing load capacities table 1

drawing load capacities table 2

drawing load capacities table 3

drawing load capacities table 4

drawing load capacities table 5

drawing load capacities table 6

drawing load capacities table 7

drawing load capacities table 8

drawing load capacities table 9

drawing load capacities table 10


Hexagon

Wrench

Number of legs


1
1
2
2
2
2
3+4
3+4
2 3+4


Angle of inclination


90°
90°
0°-45°
45°-60°
0°-45°
45°-60°
asymm.

asymm.



Code
Thread
Fastening torque
Load capacity











mm
Nm
tons
mm mm









PLBW 0,3 t
M8
6
0,5
0,3
1
0,6
0,4
0,3
0,6
4,5
0,3
0,3
8 15
PLBW 0,6 t
M10
10
1
0,6
2
1,2
0,8
0,6
1,3
9
0,6
0,6
8 15
PLBW 1 t
M12
15
1,3
1
2,6
2
1,4
1
2,1
1,5
1
1
8 15
PLBW 1,3 t
M14
30
2
1,3
4
2,6
1,8
1,3
2,7
1,9
1,3
1,3
10 24
PLBW 1,6 t
M16
50
2,5
1,6
5
3,2
2,2
1,6
3,4
2,4
1,6
1,6
10 24
PLBW 2 t
M18
70
3
2
6
4
2,8
2
4,2
3
2
2
10 24
PLBW 2,5 t
M20
100
3,5
2,5
7
5
3,5
2,5
5,3
3,7
2,5
2,5
10 24
PLBW 3 t
M22
120
4,5
3
9
6
4,2
3
6,3
4,5
3
3
14 36
PLBW 4 t
M24
160
5,5
4
11
8
5,6
4
8,4

6

4
4
14 36
PLBW 5 t
M27
200
6,5
5
13
10
7
5
10,5
7,5
5
5
14 36
PLBW 6,3 t
M30
250
7
6,3
14
12,6
8,8
6,3
13,2
9,4
6,3
6,3
14 36
PLBW 8 t
M33
270
9
8
18
16
11
8
16,5
12
8
8
19 55
PLBW 10 T
M36
320
11
10
22
20
14
10
21
15
10
10
19 55
PLBW 12,5 T
M42
400
13,5
12,5
27
25
17,5
12,5
26,3
18,7
12,5
12,5
19 55
PLBW 15 T
M48
600
16
15
32
30
21
15
32
22,5
15
15
19 55
