• Not for lifting

Design: Forged.

  • Material: Stainless acid proof steel. AISI 316.
  • Finish: Polished.
  • Warning: Not approved for lifting.

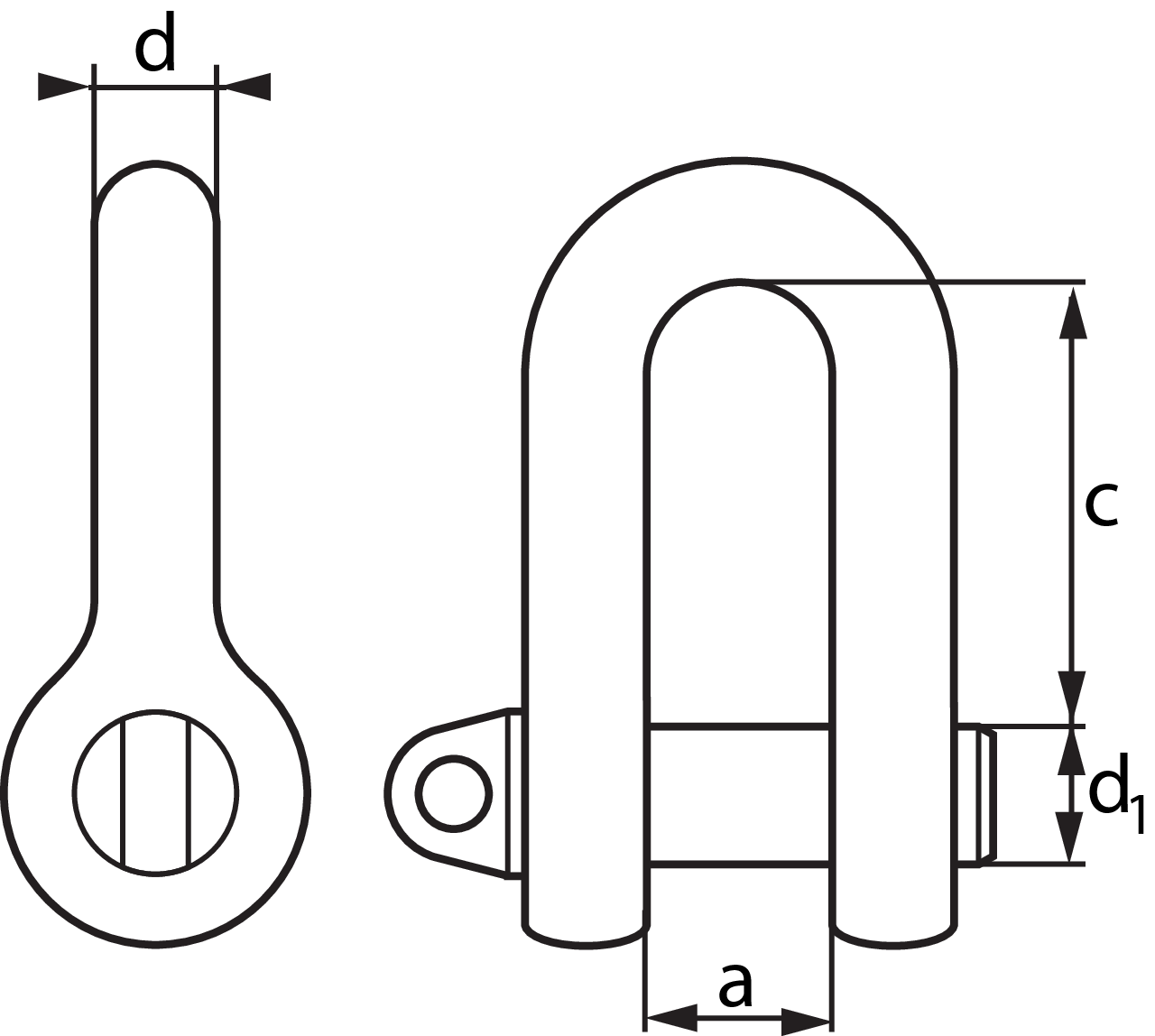

101-r_e_225mm
2929_lom_b_225mm
Select a row from the table below, then click the add to quote button
Part Code Code Thread d1 A
mm
c*
mm
D
mm
CAD
11.55MS0101A08 9003-S M8 16 32 8
11.55MS0101A10 9004-S M10 20 40 10
11.55MS0101A12 9006-S M12 25 48 12
11.55MS0101A16 9008-S M16 32 64 16
11.55MS0101A19 9009-S M20 38 76 19
**Tolerance: +/- 5%

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
