General: Application for shortening of chain.





WARNING! Not to be heat-treated.





  • Material: Alloy steel grade 8.
  • Marking: Code and grade.
  • Finish: Painted.
  • Safety factor: 4:1.
  • Grade: 8
SCC_new_2

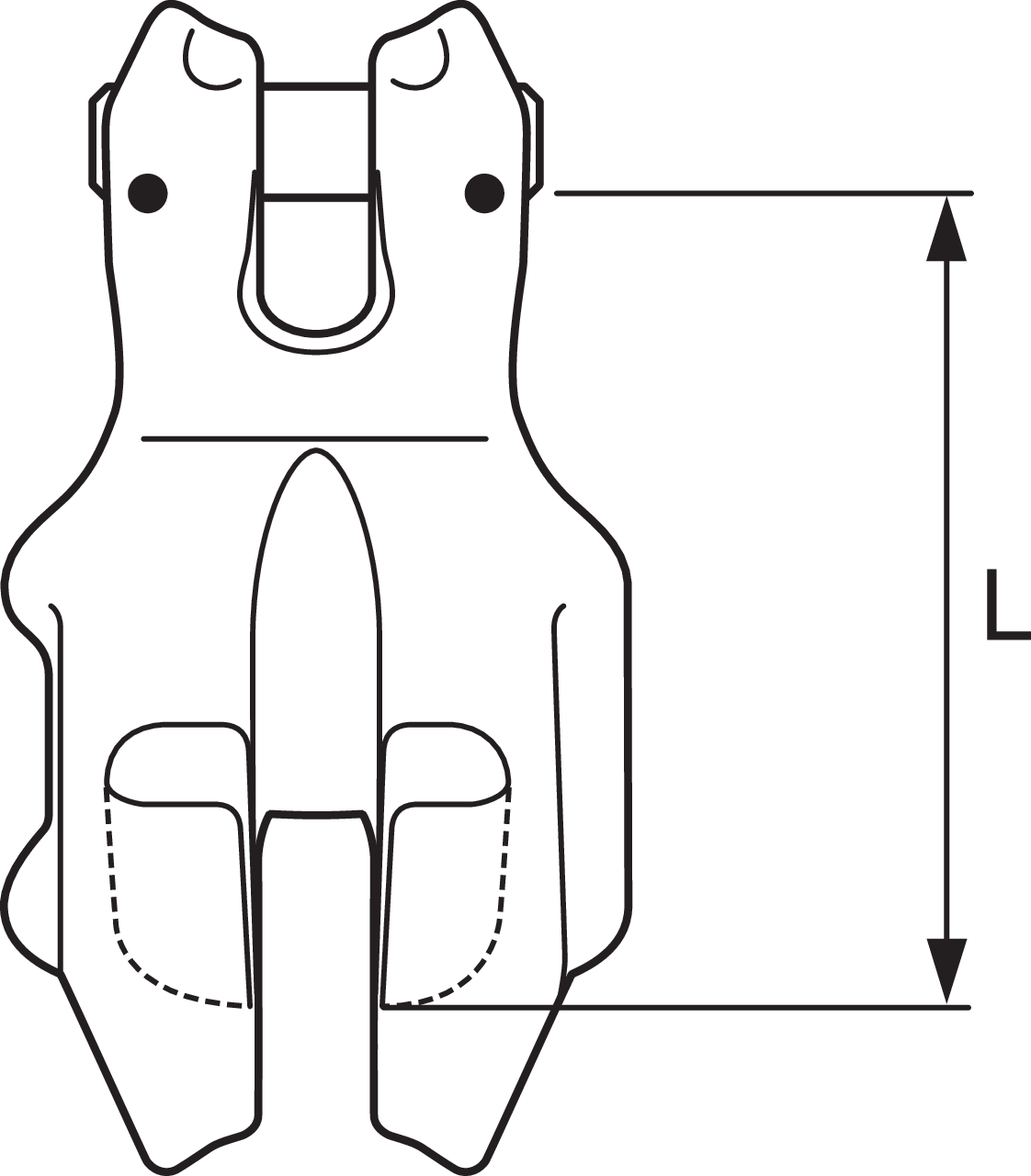

sc m_micke_225mm
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton
For chain gr 8 Ø (mm) L (mm) Weight
kg
CAD
04.59SCC08 SCC-7/8-8 2 7-8 67 0,35
11.20SC10JK SCC-10-8 3,15 10 78 0,78
11.20SC13JK SCC-13-8 5,3 13 102 1,7
11.20SC16JK SCC-16-8 8 16 127 3,5

Download CAD
