• Material: Alloy steel grade 8.
  • Marking: Code and grade.
  • Finish: Painted.
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1.
  • Grade: 8
MLA

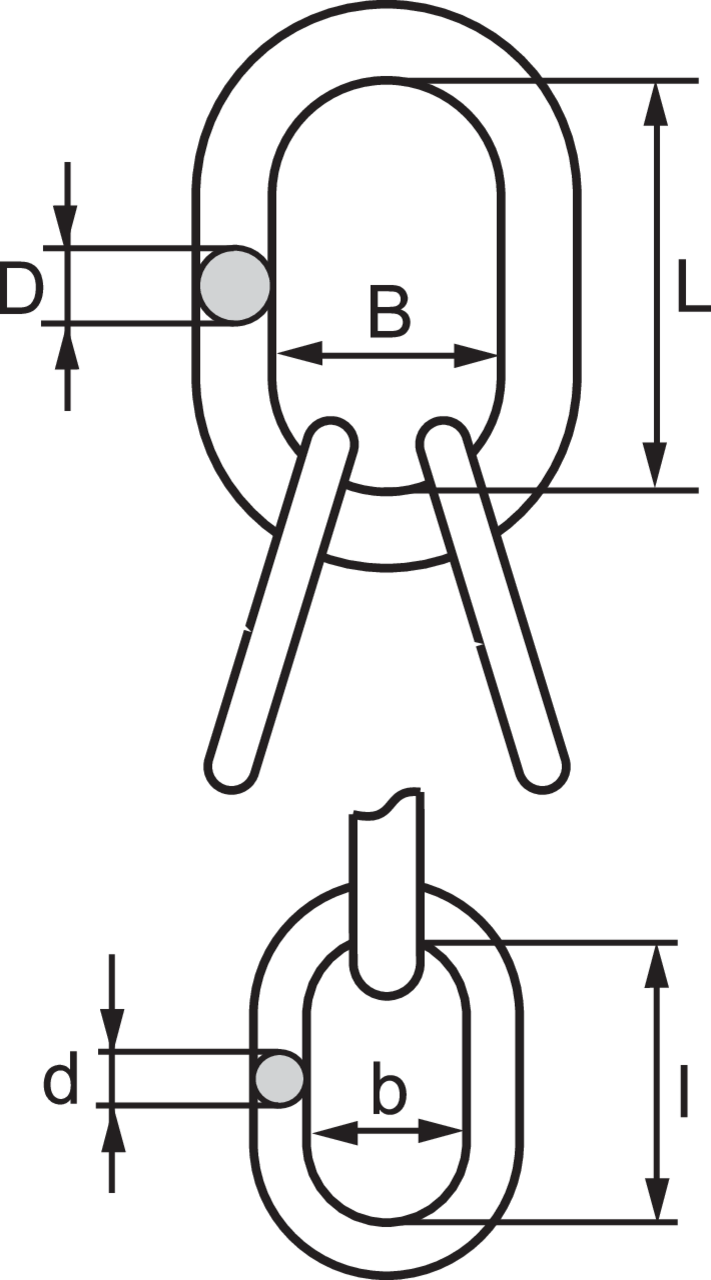

MLAm_225mm
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
B
mm
D
mm
L
mm
b
mm
d
mm
l
mm
Weight
kg
CAD
11.0125751 MLA-5-8 2 60 16 110 60 16 110 1,6
11.0125752 MLA-8-8 5,3 90 22 160 90 22 160 3,2
11.0125753 MLA-10-8 8 100 26 180 100 26 180 5,3
11.0125754 MLA-13-8 12,5 140 36 260 140 36 260 14
11.0125755 MLA-16-8 22 180 45 340 180 45 340 39
11.0125758 MLA-22-8 32 190 50 350 190 50 350 42
Other dimensions on request.
MLAC - Small size sub-links (especially suitable for chain slings with 3-4 legs)
