KWB
  • Material: Alloy steel grade 10.
  • Marking: Code and grade.
  • Finish: Painted.
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1.
  • Grade: 10
CLRX_225mm
CLRX_m_225mm
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

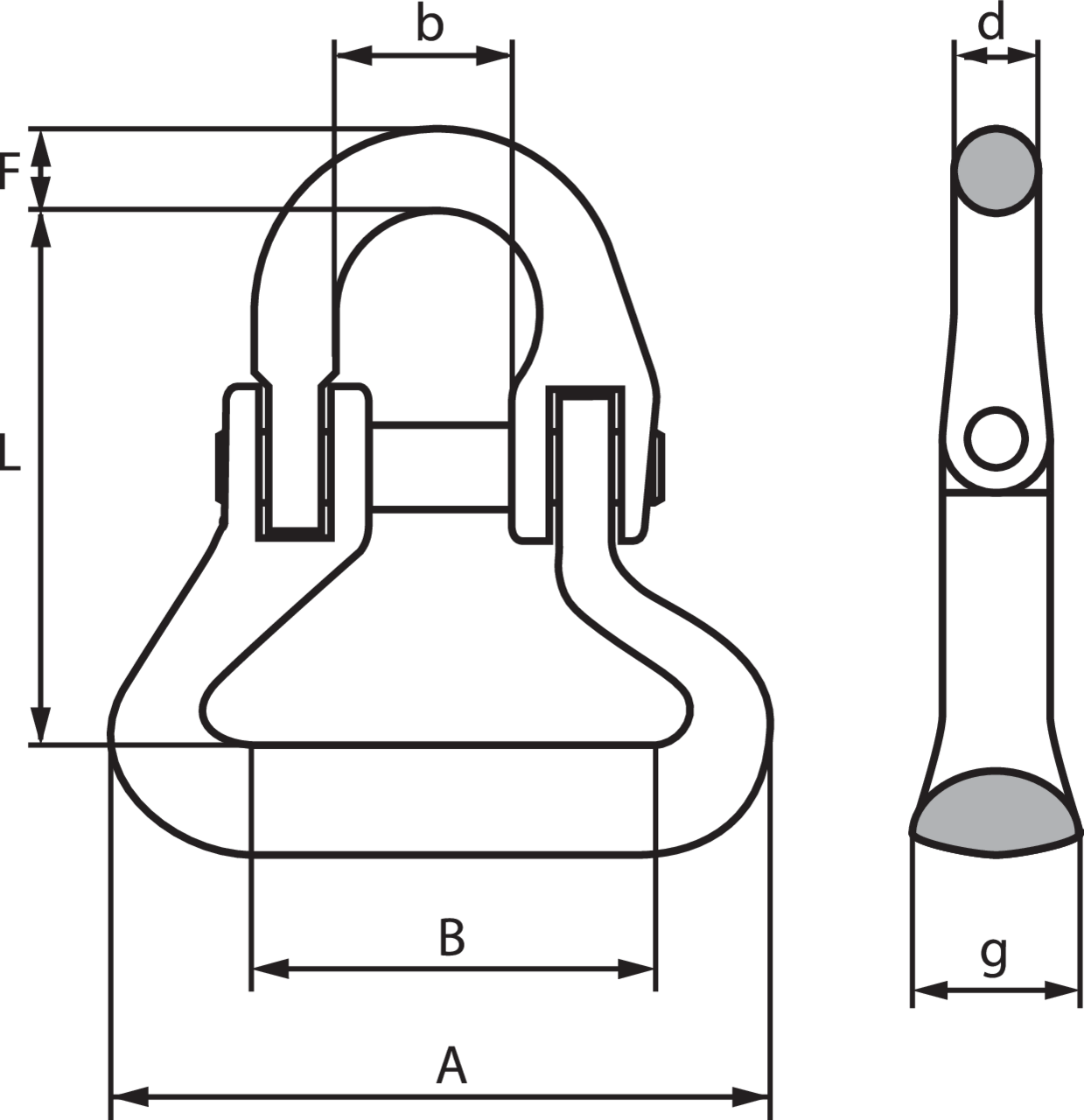

For chain gr 10 Ø (mm) A (mm) B (mm) F (mm) L (mm) D (mm) g Weight
kg
CAD
11.0658717 RSK/S-7/8-10 2,5 8 68 18 12 66 10 18 0,4
11.0620838 RSK/S-10-10 4 10 82 24 15 81 13 21 0,55
11.0684099 RSK/S-13-10 6,7 13 101 28 20 104 17 28 1,2
11.0684100 RSK/S-16-10 10 16 110 33 21 113 21 40 2
11.0674301 RSK/S-22-10 19 22 215 51 34 190 25 58 6,5
