General: Chain for lifting or lashing (other safety factor).  Available in 2 different qualities
Star Alloy (SA/S):

  • Working temperature: max. 200ºC
  • Grade Marking: "10" on link every 300mm (up to 16mm) others every 900 mm.
  • Surface: Purple varnished

Star Alloy Plus+ (SAP/S): for working temperatures up to 380°C (Available on request)

  • Material: Alloy steel.
  • Marking: According to standard, grade marking "10"
  • Temperature range: Star Alloy SA/S: -40°C up to 200°C - Star Alloy Plus+ SAP/S: -40°C up to 380°C
  • Standard: EN 818-2 (higher capacity)
  • Warning: Not to be heat treated.
  • Safety factor: 4:1 for lifting.
  • Grade: 10
Select a row from the table below, then click the add to quote button

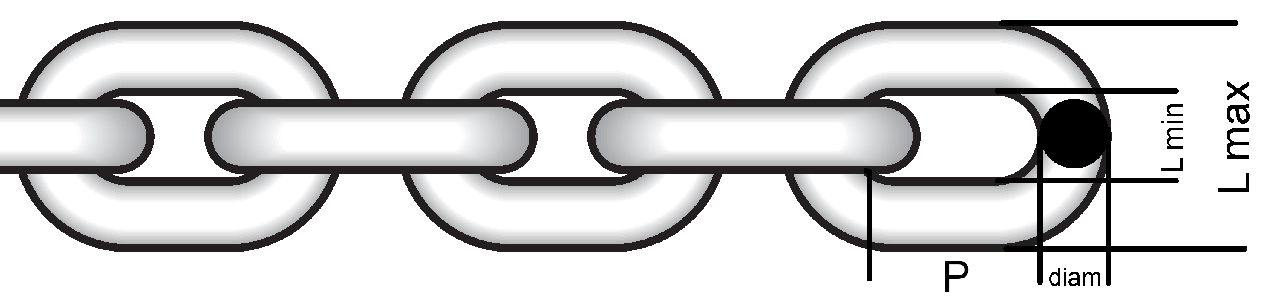

Part Code Code Diameter
mm
WLL
ton
Breaking force
kN
L min.
mm
L max
mm
Pitch P
mm
Weight
kg/m
CAD
11.6570261 SA/S-6 6 1,4 56,5 9 22 18 0,96
11.6570264 SA/S-7 7 1,9 77 10 25 21 1,2
11.6570267 SA/S-8 8 2,5 100 11 29 24 1,57
11.6570270 SA/S-10 10 4 157 14 36 30 2,46
11.6570273 SA/S-13 13 6,7 266 18 47 39 4,18
11.6570275 SA/S-16- 16 10 402 22 58 48 6,28
11.6570278 SA/S-19 19 14 567 27 69 57 8,9
11.6570281 SA/S-22- 22 19 760 30 79 66 11,88
11.6514160 SA/S-26 26 26,5 1 060 35 94 78 16,18
