Haklift

Extra large masterlink for chain sling assemblies.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

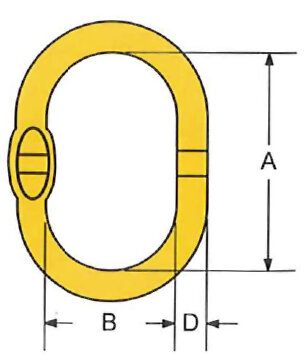

Part Code WLL
ton
For chain mm, 1-leg For chain mm, 2-leg A
mm
B
mm
D
mm
Weight
kg
CAD
11.010301005 3,2 10 7/8 190 100 16 0,86
11.0270074 6,4 13 10 300 210 25 5,53
11.010301009 7 13 10 210 110 22 1,83
11.010301012 11,5 16 13/16 270 140 28 3,8
11.010301013 17 22 20 270 140 32 5,05
11.010301015 19 22 20 420 220 38 10,78
11.010301017 27 26 22 470 250 45 17,06
11.010301014 28 26 22 270 140 38 7,29
11.010301018 45 36 32 380 200 50 17,65
