Haklift

Used for tightening loop lift. Perfect for lifting, among others, pipe bundles, lumber bundles and reinforcement steel. The assemblies include a load plate

Note! The last two numbers of the product code refer to the length (L-length): 01 = 1,0 m.

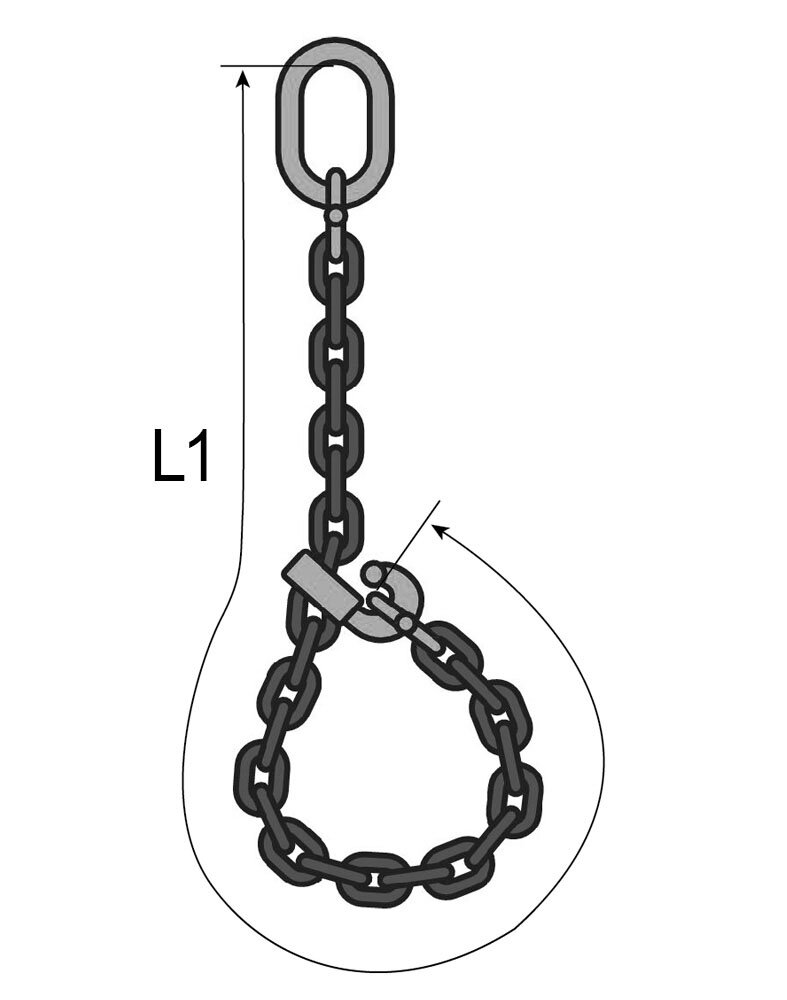

The L-dimension is measured from the inside of the top of the master ring to the inside of the bottom of the omega connector.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, black / yellow
  • Standard: EN 818-4
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Chain size
mm
CAD
NKLI07101 1,2 7
NKLI08101 1,6 8
NKLI10101 2,5 10
NKLI13101 4,2 13
NKLI16101 6,3 16
