YII Series lever hoists are extremely versatile, suitable for lifting and pulling in many applications.
A solid and compact design with special rust-resistant coating performs in extreme environments such as the offshore and mining industries. Extremely lightweight [9.5kg (1.6 Tonne)] The gears are completely enclosed and make the hoist highly reliable and durable meaning lower maintenance costs. One-touch change lever further improves work efficiency. Tough black body resists scratches and prevents rust. Waterproof, shock resistant gear and brake cover. The bolted rubber grip ensures safe operation of the lever hoist.

  • Material: Chain and hook, alloy steel grade 10.
  • Marking: WLL, code and CE marking.
  • Finish: Painted.
  • Safety factor: 5:1
Select a row from the table below, then click the add to cart button

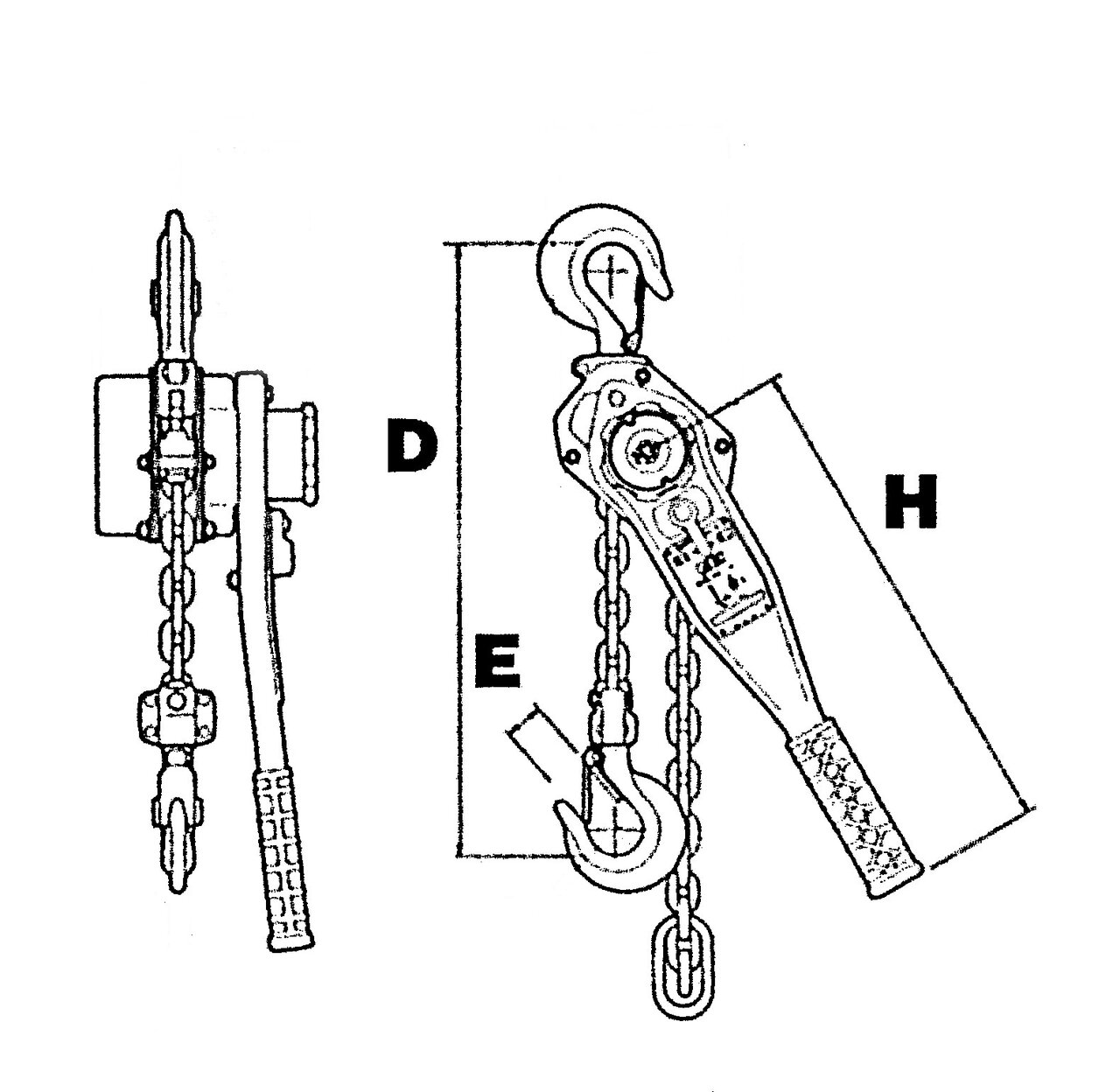

Part Code Code WLL
Lifting height
Min Headroom
Hook Opening
Lever length
Load chain Ø
Number of falls Weight
16.20YII0025030 YII-25 0,25 1,5 235 19 155 4,3 1 2
16.20YII0050030 YII-50 0,5 1,5 265 23 284 5 1 3,6
16.20YII0080030 YII-80 0,8 1,5 290 25 268 5,6 1 6,2
16.20YII0160030 YII-160 1,6 1,5 350 29 385 7,2 1 9,5
16.20YII0320030 YII-320 3,2 1,5 420 36 385 9,0 1 15,5
16.20YII0640030 YII-640 6,3 1,5 570 45 385 9,0 2 26,5
*Other range of lift-height available upon request.

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
