Haklift

Hook is equipped with spring loaded safety latch. Due to the swivel the hook is easy to align into the wanted direction.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to cart button

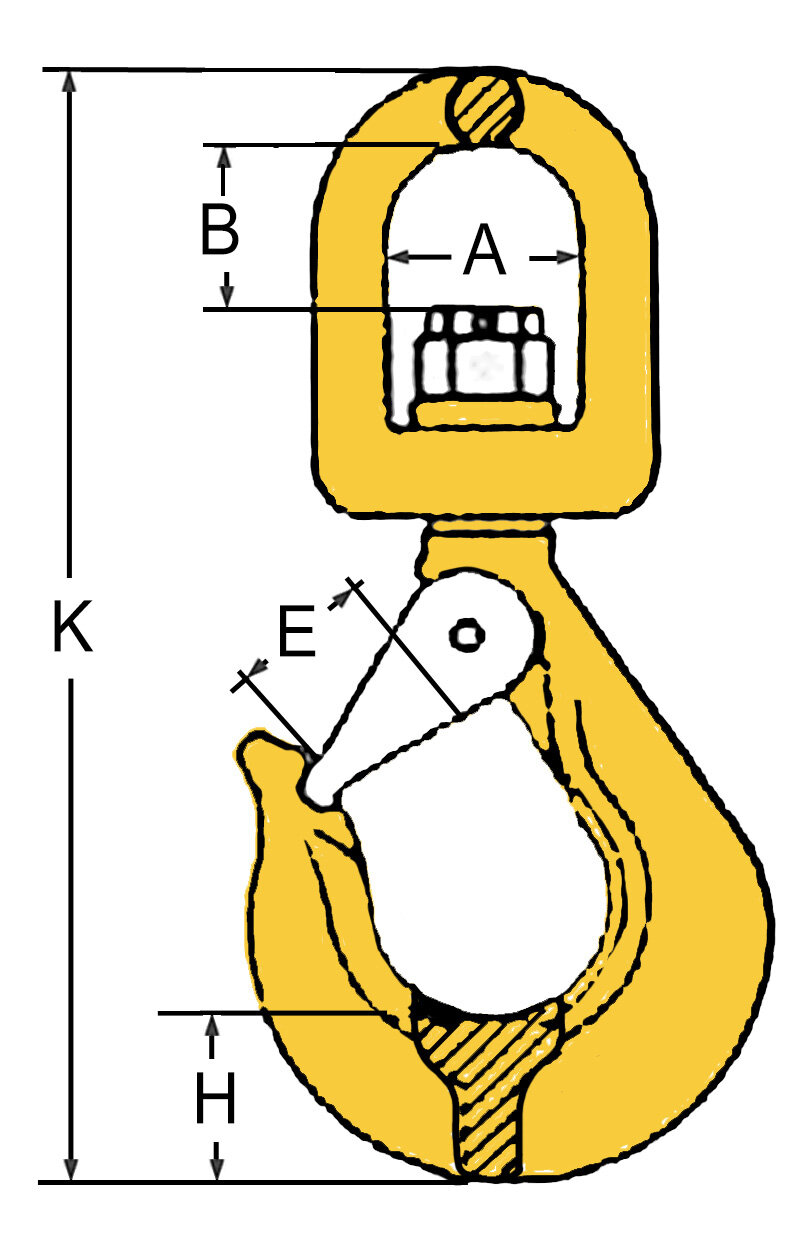

Part Code WLL
ton
For chain dia.
mm
K
mm
E
mm
A
mm
B
mm
Weight
kg
CAD
11.1025091 1,12 6 170 22 32,5 22 0,34
11.1025092 2 7/8 210 27 35,5 26 0,85
11.1025093 3,15 10 247 32 42 34 1,54
11.1025094 5,3 13 302 40 50 38,5 3,4
11.1025095 8 16 382 45 61 55 5,36
