Green Pin

Certification: at no extra charge this product can be supplied with a works certificate, a 3.1 material certificate and/or EC Declaration of Conformity

  • Material: alloy steel, grade 8, quenched and tempered
  • Marking: CE-marked
  • Temperature range: -40°C up to +200°C
  • Finish: Painted red or white
  • Safety factor: 5:1
  • Grade: 8
Select a row from the table below, then click the add to cart button

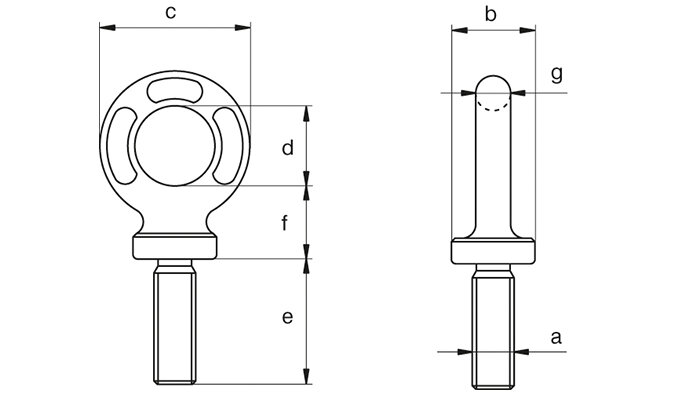

Part Code WLL
ton
Thread
mm
b
mm
c
mm
d
mm
e
mm
f
mm
g
mm
Weight
kg
CAD
11.40GPAL06R 0,2 M6 x1.00 20 34 20 20 17 7 0,05
11.40GPAL08R 0,4 M8 x 1.25 20 34 20 24 17 7 0,07
11.40GPAL10R 0,7 M10 x 1.50 20 38 22 30 19 8 0,08
11.40GPAL12R 1 M12 x 1.75 25 47 26 36 23 10 0,14
11.40GPAL14R 1,2 M14 x 2.00 30 57 29 40 28 14 0,25
11.40GPAL16R 1,5 M16 X 2.00 36 65 35 53 30 14 0,39
11.40GPAL18R 2 M18 x 2.50 36 65 35 53 30 14 0,38
11.40GPAL20R 2,5 M20 x 2.50 40 73 39 58 34 16 0,58
11.40GPAL22R 3 M22 x 2.50 42 82 44 64 38 19 1,01
11.40GPAL24R 4 M24 x 3.00 55 95 54 84 40 20 1,12
11.40GPAL27R 5 M27 x 3.00 55 95 54 84 40 20 1,18
11.40GPAL30R 6 M30 x 3.50 60 108 59 99 49 24 1,84
11.40GPAL33R 7 M33 x 3.50 60 108 59 99 49 24 2,01
11.40GPAL36R 8 M36 x 4.00 65 118 67 117 45 25 2,44
11.40GPAL39R 9 M39 x 4.00 65 118 67 117 45 25 2,62
11.40GPAL42R 10 M42 x 4.50 70 139 79 135 56 31 5,41
11.40GPAL45R 15 M45 x 4.50 70 139 79 135 56 31 4,16
11.40AL48R 18 M48 x 5.00 95 181 97 150 68 42 8,22
11.40AL52R 20 M52 x 5.00 95 181 97 150 68 42 8,55
11.40AL56R 25 M56 x 5.50 95 181 97 150 68 42 8,85
11.40AL60R 30 M60 x 5.50 95 181 97 150 68 42 9,16
11.40AL64R 36 M64 x 6.00 95 181 97 150 68 42 9,55
